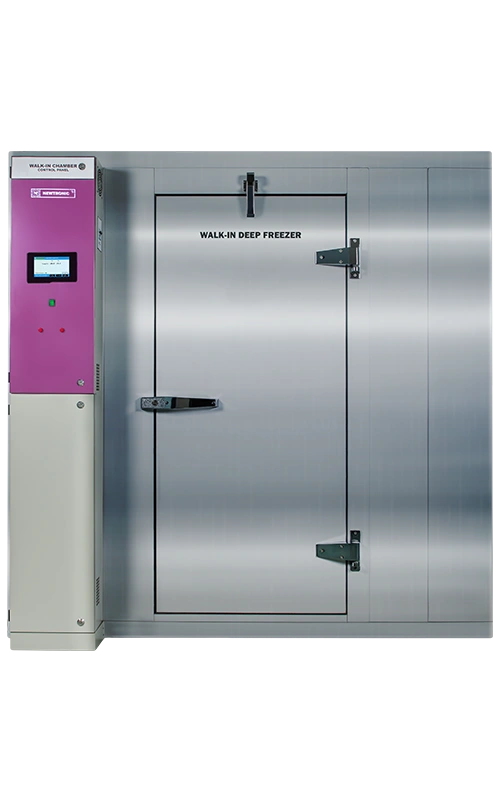

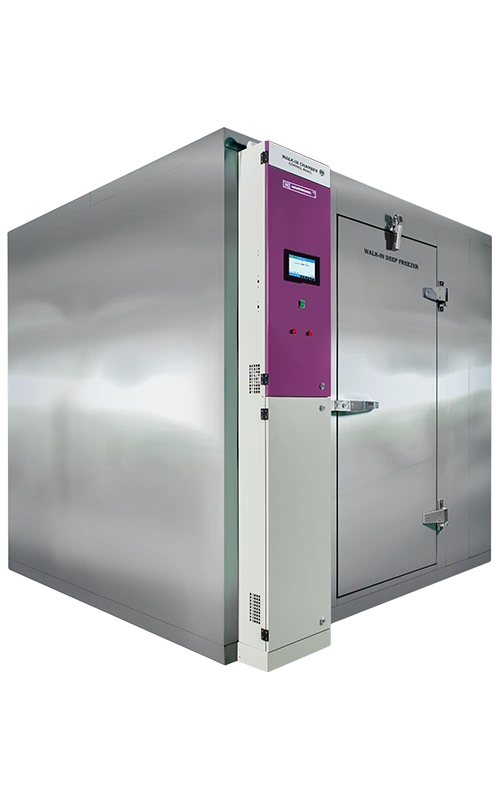

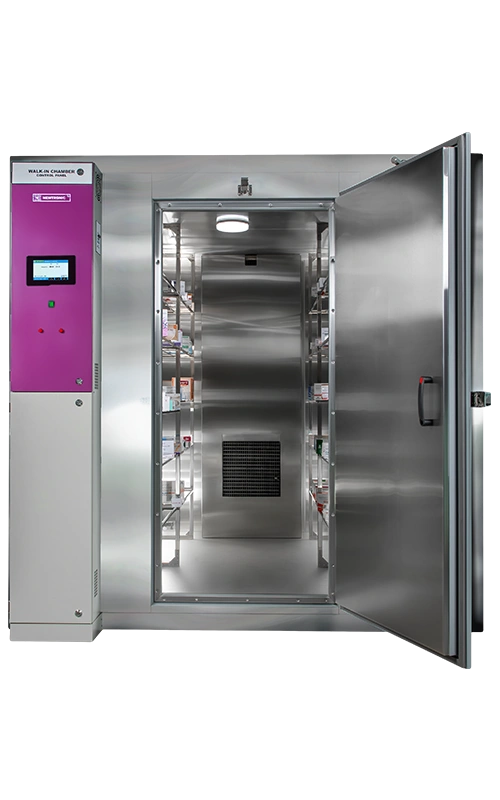

Walk-In Deep Freezers

Newtronic Deep Freezers are equipped with a Standby Cooling System to significantly minimize breakdowns.

For drug products intended for storage at sub-zero temperatures, NEWTRONIC Deep Freezers provide a very optimal solution by offering a wide temperature range from 0ºC up to -20ºC.

The switchover to Standby system is automatic & immediate upon detection of a fault in Primary.

If desired, the switchovers can also be scheduled or manual ones.

They also offer automatic defrost by utilizing a heater to defrost the condenser coils, which cycles on and off, preventing any ice build-up. Their robust compressors and CFC-free insulation help ensure temperature uniformity and sample protection.

Features

ETHERNET COMMUNICATION

Offers high-speed data transfer, surpassing serial (RS-485) communication, and adheres to a global standard for communication protocol, enabling data operations from any PC over the LAN without requiring a separate PC interface.

IOT - Enable Controller

Complete Operations driven through PLC, No Data Loss: Data Storage of upto 1000 readings on the PLC itself, At an interval of 30 mins, data upto 20 days is stored on the PLC itself, Facility to send emails directly from the PLC.

Touch Screen Display

All operations through a single 4" Color touch screen display, PLC IP Address setting, Component Working Hours, Standby system change over, Password protection for set values and calibration mode.

Documentation & Training

IQ, OQ, PQ, Calibration certificates, Operations & maintenance manuals, GA & Electrical drawings, Material test certificates, Training to end-users.

ICDAS Software

21 CFR Part 11 Ready, Single software suitable for upto 20 equipments, Automatic daily data back-up, Alarm logs. Alarm acknowledgement with e-signatures, Audit trails, MKT Calculations, Graphical viewing & data trending, Data export in pdf format.

Complete Range of Alarms

Temperature & Humidity Deviations, Door Opening, Water Supply Failure, Component Failure, Mains Failure.

Standby Cooling System

Completely ready-to-use systems, Automatic switch-over upon failure of primary systems to achieve conditions, Switch-over also upon detection of HP/LP & Internal fault, Scheduled & manual change-overs, Recording of all change-overs in the software.

Email Alert

When an alarm is triggered, an e-mail is sent to the registered PC or mobile address, *connection to a mail server is required to use e-mail alert.

Touch Screen Door Access System

Temperature & Humidity Deviations, Door Opening, Water Supply Failure, Component Failure, Mains Failure.

Mobile Alert

Time of Alarm transmission, Name of Equipment, Transmitted message(Equipment name, alarm time, type of alarm & limits).

Safety

Temperature Overshoot/Undershoot, Delay Timer to safeguard the Compressor, MCB to cut-off over-current supply, Standby Controlling Sensor upon failure of Primary, Emergency Bell switch inside the Chamber.

Business Sector
Features
Temperature Range -25°C to 0°C
Temperature Accuracy ± 3°C
Temperature Uniformity ± 5°C
Double walled with 125 mm PUF insulated modular panels with easy on-site assembly SS 304 Interior & Exterior either SS 304 or Pre Coated GI
Stainless Steel Trays PVC strip curtain for reducing temperature leakages
Illuminated working area Flooring of Linoleum carpet
Forced air circulation for uniform temperature Mechanism for equalizing air-pressure for door opening from inside
CFC free cooling system consisting of hermetically sealed compressor coupled with evaporation coil & condenser System is made up of split type condenser unit in well-ventilated area to avoid throw of hot air in the room
Complete water-drainge facility with drain point, trays & piping Complete Operations driven through IOT-enabled Controller with data logging capacity of upto 1000 readings
High speed Ethernet based communication All operations through a single 7″ Color Touch Screen Display
High quality PT-100 Temperature Sensor Audio/Visual alarms for deviations
Complete with DQ, IQ, OQ, PQ & SOP & Maintenance Manual
ICDAS – A Common Software suitable for all Newtronic make equipments Remote alarm system suitable for upto 4 nos. Newtronic make equipments
8pt. Temperature Scanner Stand by Cooling System with auto switch over
Mobile Alert system
Temperature Range 20°C to 60°C
Temperature Accuracy ± 0.5°C
Temperature Uniformity ± 1°C
Humidity Range 40% RH to 95% RH
Humidity Accuracy ± 2% RH
Humidity Uniformity ± 3% RH
Double walled with PUF insulation. Stainless Steel trays
SS 304 Interior & Exterior either SS 304 or Mild Steel Full-length inner glass door & metal door with gasket & lock on the outside
Internal LED lights Forced air circulation for uniform temperature
PU wheels for easy movement U-shaped SS tubular heaters
Non condensing steam injection type humidity system with standby heater & auto switch overs CFC free cooling system consisting of hermetically sealed compressor coupled with evaporation coil & condenser
Stand by humidity system with booster humidification Complete Operations driven through PLC with data logging capacity of upto 1000 readings
High speed Ethernet based communication All operations through a single 7″ Color Touch Screen
High quality imported make T/Rh combo sensor with 4-20 mA output Safety devices: Low & high temperature cut-off settable thermostats
Audio/Visual alarms for deviations Complete with DQ, IQ, OQ, PQ & SOP & Maintenance Manual
ICDAS – A Common Software suitable for 20 nos. Newtronic make equipments Door Access system (Numeric or Biometric)
4pt. Temperature & Humidity Scanner Mobile Alert system
Stand by Cooling System with auto switch overs (430 litre & above) Remote alarm system suitable for 4 nos. Newtronic make equipments
ModelCapacity – CuFt.Capacity – LitresInternal Size – (HxWxD) mmExternal Size – (HxWxD) mmTrays Qty.Tray Size – (WxD) mmApprox. Weight – Eqip. KgApprox. Weight – Ship. Kg
NLHC7SI 7 200 800 x 500 x 500 1315 x 660 x 985 3 430 x 460 150 225
NLHC16SI 16 430 1200 x 600 x 600 1715 x 760 x 1155 4 530 x 560 250 325
NLHC26SI 26 735 1500 x 700 x 700 2070 x 860 x 1255 5 630 x 660 275 350
NLHC34SI 34 1000 1500 x 800 x 800 2070 x 960 x 1355 5 730 x 760 350 425
NLHC54SI 54 1500 1500 x 1600 x 600 2070 x 1760 x 1155 10 695 x 560 350 450
NLHC71SI 71 2000 1500 x 1600 x 800 2070 x 1760 x 1355 10 695 x 760 375 475
