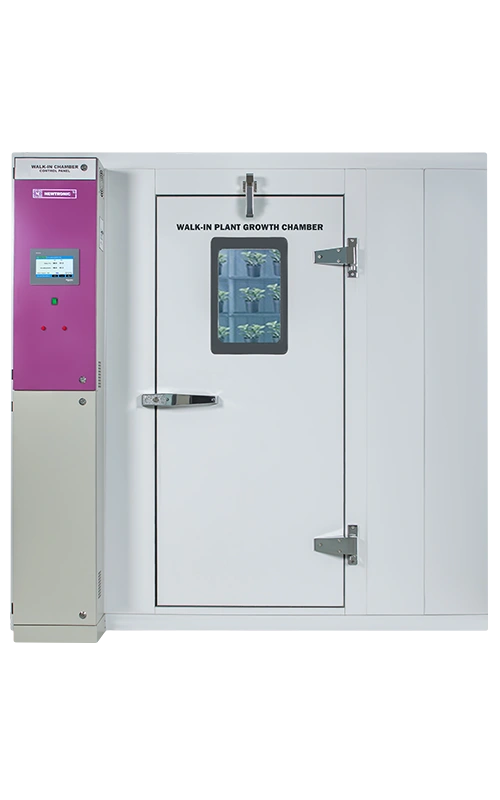

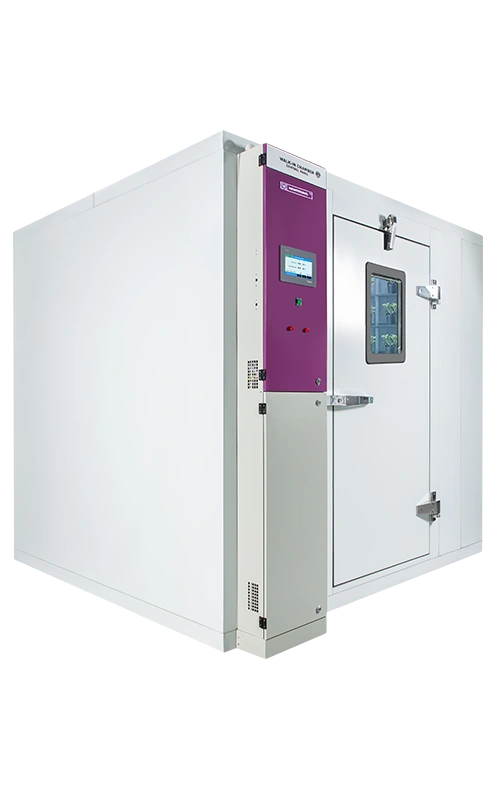

Walk-In Plant Growth Chamber

We always strive to deliver the most innovative products, superior With Walk-In Plant Growth Chamber, precise functionality and environmental friendly solutions.

In continuation to our commitment, Walk-In Plant Growth Chamberare our new innovation, where you experience uncompromising performance guarantee through stringent temperature, light and humidity control.

Utilizing years of successful experience, these units are acclaimed by various industry experts. Whether research labs, agricultural labs, education, universities and institutes, our products are working perfectly and delivering precise results.

Our engineering team can construct an exact growth chamber that meets or exceeds your research; depending upon requirement we can provide you small plant growth chambers or large walk-in type plant growth rooms. These units achieve reliable interaction between heat or cold, humidity and light; also feature an extended variety of temperatures and lighting patterns that are essential for plant growth research.

Features

PLC-Based Control System

Complete Operations driven through PLC, No Data Loss: Data Storage of upto 1000 readings on the PLC itself, At an interval of 30 mins, data upto 20 days is stored on the PLC itself, Facility to send emails directly from the PLC.

Complete Range of Alarms

Temperature & Humidity Deviations, Door Opening, Water Supply Failure, Component Failure, Mains Failure.

Touch Screen Display

All operations through a single 4" Color touch screen display, PLC IP Address setting, Component Working Hours, Standby system change over, Password protection for set values and calibration mode.

Safety

Temperature Overshoot/Undershoot, Humidity Overshoot, Low water-level, Delay Timer to safeguard the Compressor, MCB to cut-off over-current supply, Standby Controlling Sensor upon failure of Primary, In Walk-in chambers door can be open from inside, Emergency Bell switch inside the Chamber

Business Sector

Lifescience

Horticulture

Features
Temperature Range 20°C to 60°C
Temperature Accuracy ± 0.5°C
Temperature Uniformity ± 1°C
Humidity Range 40% RH to 95% RH
Humidity Accuracy ± 2% RH
Humidity Uniformity ± 3% RH
Double walled with PUF insulation. Stainless Steel trays
SS 304 Interior & Exterior either SS 304 or Mild Steel Full-length inner glass door & metal door with gasket & lock on the outside
Internal LED lights Forced air circulation for uniform temperature
PU wheels for easy movement U-shaped SS tubular heaters
Non condensing steam injection type humidity system with standby heater & auto switch overs CFC free cooling system consisting of hermetically sealed compressor coupled with evaporation coil & condenser
Stand by humidity system with booster humidification Complete Operations driven through PLC with data logging capacity of upto 1000 readings
High speed Ethernet based communication All operations through a single 7″ Color Touch Screen
High quality imported make T/Rh combo sensor with 4-20 mA output Safety devices: Low & high temperature cut-off settable thermostats
Audio/Visual alarms for deviations Complete with DQ, IQ, OQ, PQ & SOP & Maintenance Manual
ICDAS – A Common Software suitable for 20 nos. Newtronic make equipments Door Access system (Numeric or Biometric)
4pt. Temperature & Humidity Scanner Mobile Alert system
Stand by Cooling System with auto switch overs (430 litre & above) Remote alarm system suitable for 4 nos. Newtronic make equipments
ModelCapacity – CuFt.Capacity – LitresInternal Size – (HxWxD) mmExternal Size – (HxWxD) mmTrays Qty.Tray Size – (WxD) mmApprox. Weight – Eqip. KgApprox. Weight – Ship. Kg
NLHC7SI 7 200 800 x 500 x 500 1315 x 660 x 985 3 430 x 460 150 225
NLHC16SI 16 430 1200 x 600 x 600 1715 x 760 x 1155 4 530 x 560 250 325
NLHC26SI 26 735 1500 x 700 x 700 2070 x 860 x 1255 5 630 x 660 275 350
NLHC34SI 34 1000 1500 x 800 x 800 2070 x 960 x 1355 5 730 x 760 350 425
NLHC54SI 54 1500 1500 x 1600 x 600 2070 x 1760 x 1155 10 695 x 560 350 450
NLHC71SI 71 2000 1500 x 1600 x 800 2070 x 1760 x 1355 10 695 x 760 375 475
Temperature Range: 10ºC – 35ºC Lights On
5ºC – 35ºC Lights Off
Humidity Range: 40%Rh to 90%Rh Lights On
40%Rh to 90%Rh Lights Off
Doubled walled with 80 mm PUF insulated modular panels which can be easily assembled at site CFC free cooling system consists of hermetically sealed compressor coupled with evaporation coil and condenser.
SS 304 Interior & Exterior made of either pre-coated GI sheet or SS 304 System is made up of Condenser unit in well-ventilated area to avoid throw of hot air in the room
Stainless steel trays Complete operation driven through PLC with data logging capacity of up to 1000 readings
Observation window – 300mm x 300mm Printer interface facility
LED lights, Day/night programmable cycle All operations through a 4″ color touch screen display
U shaped SS tubular heater High quality European make split type temperature & humidity combo sensor with 4-20mA output.
Flooring of linoleum carpet Safety device: Low & High temperature cut-off settable thermostats & high humidity cut off device
Forced air circulation for Uniform temperature Audio/visual alarms for deviations
Steam Based Humidication system with automatic water level control Operation & Maintenance Manual
Co2 control 0-1000 ppm.
Exterior & Interior are of stainless steel (SS304)Capacity-CuFtCapacity-LitreInternal Size-(H*W*D)mmExternal Size-(H*W*D)mmTrays Qty.Tray Size.-mm
NLWH204SI 204 5712 2000 X 1360 X 2100 2160 X 1520 X 2260 24 870 X 300
NLWH244SI 244 6854 2400 X 1360 X 2100 2560 X 1520 X 2260 32 870 X 300
NLWH300SI 300 8400 2000 X 2000 X 2100 2160 X 2160 X 2100 24 870 X 600
NLWH360SI 360 10080 2400 X 2000 X 2100 2560 X 2160 X 2260 32 870 X 600
NLWH428SI 428 12000 2400 X 2000 X 2500 2560 X 2160 X 2660 48 700 X 600
NLWH552SI 552 15480 2400 X 2500 X 2580 2560 X 2660 X 2740 48 700 X 800
NLWH660SI 660 18480 2400 X 2660 X 3240 2560 X 2660 X 3240 48 870 X 800
