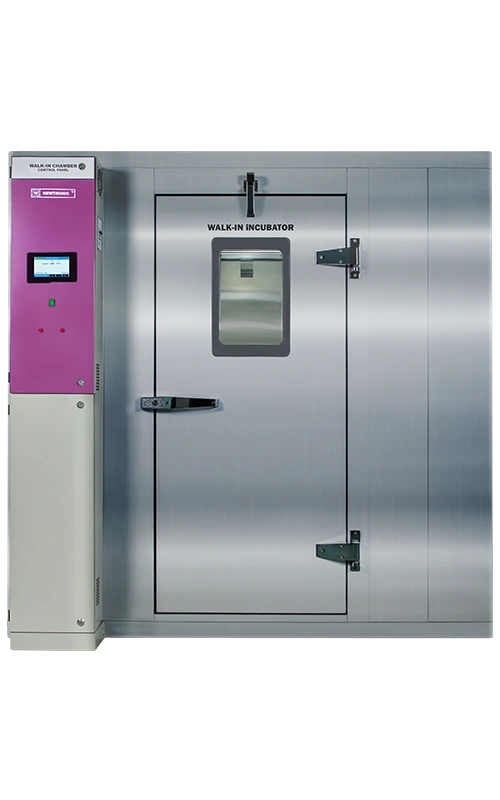

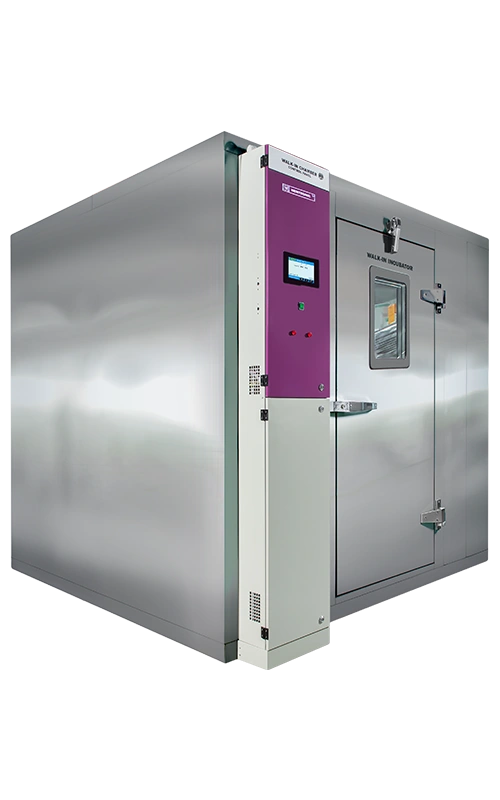

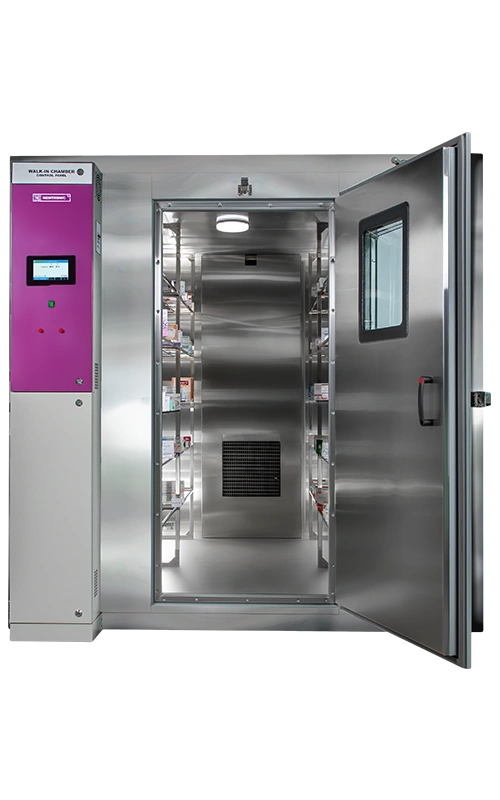

Walk-in Incubators
These are the medium to large-sized versions of BOD Incubators with similar application of growth & storage of bacterial cultures, gentle incubation & conditioning and Media Preparation.
While Humidity is not a parameter to be controlled or measured in a Walk-In Incubator, it is important that there is no loss of humidity in the chamber since it can lead to cracks in the media.
The design team at Newtronic ensure that our Walk-In Incubators are designed to fit into such key requirements perfectly well.
They are supplied at customer-site in a knock-down condition & can pass through standard sized doorways. They are assembled on-site. The installation & commissioning is accompanied with IQ, OQ, PQ protocols & complete documentation.
Standby Cooling System
ETHERNET COMMUNICATION
Offers high-speed data transfer, surpassing serial (RS-485) communication, and adheres to a global standard for communication protocol, enabling data operations from any PC over the LAN without requiring a separate PC interface.
Documentation & Training
IQ, OQ, PQ, Calibration certificates, Operations & maintenance manuals, GA & Electrical drawings, Material test certificates, Training to end-users.
IOT-Enabled Control System
Complete Operations driven through PLC, No Data Loss: Data Storage of upto 1000 readings on the PLC itself, At an interval of 30 mins, data upto 20 days is stored on the PLC itself, Facility to send emails directly from the PLC.
Complete Range of Alarms
Temperature & Deviations, Door Opening, Component Failure, Mains Failure.
Touch Screen Display
All operations through a single 4" Color touch screen display, PLC IP Address setting, Component Working Hours, Standby system change over, Password protection for set values and calibration mode.
Standby Cooling System
Completely ready-to-use systems, Automatic switch-over upon failure of primary systems to achieve conditions, Switch-over also upon detection of HP/LP & Internal fault, Scheduled & manual change-overs, Recording of all change-overs in the software.
Mobile Alert
Mobile alert system, Time of alarm transmission, Name of equipment, Transmitted message(Equipment name, alarm time, type of alarm & limits).
ICDAS Software
21 CFR Part 11 Ready, Single software suitable for upto 20 equipments, Automatic daily data back-up, Alarm logs. Alarm acknowledgement with e-signatures, Audit trails, MKT Calculations, Graphical viewing & data trending, Data export in pdf format.
Safety
Temperature Overshoot/Undershoot, Delay Timer to safeguard the Compressor, MCB to cut-off over-current supply, Standby Controlling Sensor upon failure of Primary, Emergency Bell switch inside the Chamber.
Touch Screen Door Access System
Temperature & Humidity Deviations, Door Opening, Water Supply Failure, Component Failure, Mains Failure.
E-mail Alert
When an alarm is triggered, an e-mail is sent to the registered PC or mobile address, Connection to a mail server is required to use e-mail alert.
Lifescience
Biotechnology
Food & Beverages
| Temperature Range | 10°C to 60°C |
| Temperature Accuracy | ± 0.5°C |
| Temperature Uniformity | ± 1°C |
| Double walled with 60 mm PUF insulated modular panels with easy on-site assembly | Forced air circulation for uniform temperature |
| SS 304 Interior & Exterior either SS 304 or Pre Coated G.I. | CFC free cooling system consisting of hermetically sealed compressor coupled with evaporation coil & condenser |
| Stainless Steel Trays | System is made up of split type condenser unit in well-ventilated area to avoid throw of hot air in the room |
| Observation window – 300 x 300 mm | Complete Operations driven through IOT-enabled Controller with data logging capacity of upto 1000 readings |
| PVC strip curtain for reducing temperature leakages | High speed Ethernet based communication |
| Illuminated working area | All operations through a single 7″ Color Touch Screen Display |
| Flooring of Linoleum carpet | High-quality PT-100 Temperature sensor |
| Heater line along the door to avoid condensation | Safety devices: Low & High temperature cut-off settable thermostats |
| U shaped SS tubular heaters | Audio/Visual alarms for deviations |
| Complete with DQ, IQ, OQ, PQ ,SOP & Maintenance Manual |
| ICDAS -A Single Software installation for all Newtronic make equipments | Remote alarm system suitable for upto 4 nos. Newtronic make equipments |
| 8pt. Temperature Scanner | Door Access system (Numeric or Biometric) |
| Stand by Cooling System with auto switch over | Mobile Alert System |
| Model | Capacity – CuFt. | Capacity – Litres | Internal Size – (HxWxD) mm | External Size – (HxWxD) mm | Tray Qty. | Tray Size – (WxD) mm |
|---|---|---|---|---|---|---|
| NLWI208SI | 208 | 5,848 | 2000 X 1360 X 2150 | 2120 X 1480 X 2270 | 20 | 900 x 300 |
| NLWI250SI | 250 | 7,017 | 2400 X 1360 X 2150 | 2520 X 1480 X 2270 | 28 | 900 x 300 |
| NLWI307SI | 307 | 8,600 | 2000 X 2000 X 2150 | 2120 X 2120 X 2270 | 20 | 900 x 600 |
| NLWI368SI1 | 368 | 10,320 | 2400 X 2000 X 2150 | 2520 X 2120 X 2270 | 28 | 900 x 600 |
| NLWI543SI | 543 | 15,216 | 2400 X 2000 X 3170 | 2520 X 2120 X 3290 | 42 | 900 x 600 |
| NLWI679SI | 679 | 19,020 | 2400 X 2500 X 3170 | 2520 X 2620 X 3290 | 42 | 900 x 800 |
| NLWI1092SI | 1,092 | 30,600 | 2400 X 2500 X 5100 | 2520 X 2620 X 5220 | 70 | 900 x 800 |
| NLWI1787SI | 1,787 | 50,040 | 3000 X 4000 X 4170 | 3120 X 4120 X 4290 | 126 | 900 x 600 |
| NLWI12857SI | 2,857 | 80,019 | 3000 X 5100 X 5230 | 3120 X 5220 X 5350 | 162 | 900 x 800 |
| Temperature Range | 20°C to 60°C |
| Temperature Accuracy | ± 0.5°C |
| Temperature Uniformity | ± 1°C |
| Humidity Range | 40% RH to 95% RH |
| Humidity Accuracy | ± 2% RH |
| Humidity Uniformity | ± 3% RH |
| Double walled with PUF insulation. | Stainless Steel trays |
| SS 304 Interior & Exterior either SS 304 or Mild Steel | Full-length inner glass door & metal door with gasket & lock on the outside |
| Internal LED lights | Forced air circulation for uniform temperature |
| PU wheels for easy movement | U-shaped SS tubular heaters |
| Non condensing steam injection type humidity system with standby heater & auto switch overs | CFC free cooling system consisting of hermetically sealed compressor coupled with evaporation coil & condenser |
| Stand by humidity system with booster humidification | Complete Operations driven through PLC with data logging capacity of upto 1000 readings |
| High speed Ethernet based communication | All operations through a single 7″ Color Touch Screen |
| High quality imported make T/Rh combo sensor with 4-20 mA output | Safety devices: Low & high temperature cut-off settable thermostats |
| Audio/Visual alarms for deviations | Complete with DQ, IQ, OQ, PQ & SOP & Maintenance Manual |
| ICDAS – A Common Software suitable for 20 nos. Newtronic make equipments | Door Access system (Numeric or Biometric) |
| 4pt. Temperature & Humidity Scanner | Mobile Alert system |
| Stand by Cooling System with auto switch overs (430 litre & above) | Remote alarm system suitable for 4 nos. Newtronic make equipments |
| Model | Capacity – CuFt. | Capacity – Litres | Internal Size – (HxWxD) mm | External Size – (HxWxD) mm | Trays Qty. | Tray Size – (WxD) mm | Approx. Weight – Eqip. Kg | Approx. Weight – Ship. Kg |
|---|---|---|---|---|---|---|---|---|
| NLHC7SI | 7 | 200 | 800 x 500 x 500 | 1315 x 660 x 985 | 3 | 430 x 460 | 150 | 225 |
| NLHC16SI | 16 | 430 | 1200 x 600 x 600 | 1715 x 760 x 1155 | 4 | 530 x 560 | 250 | 325 |
| NLHC26SI | 26 | 735 | 1500 x 700 x 700 | 2070 x 860 x 1255 | 5 | 630 x 660 | 275 | 350 |
| NLHC34SI | 34 | 1000 | 1500 x 800 x 800 | 2070 x 960 x 1355 | 5 | 730 x 760 | 350 | 425 |
| NLHC54SI | 54 | 1500 | 1500 x 1600 x 600 | 2070 x 1760 x 1155 | 10 | 695 x 560 | 350 | 450 |
| NLHC71SI | 71 | 2000 | 1500 x 1600 x 800 | 2070 x 1760 x 1355 | 10 | 695 x 760 | 375 | 475 |
