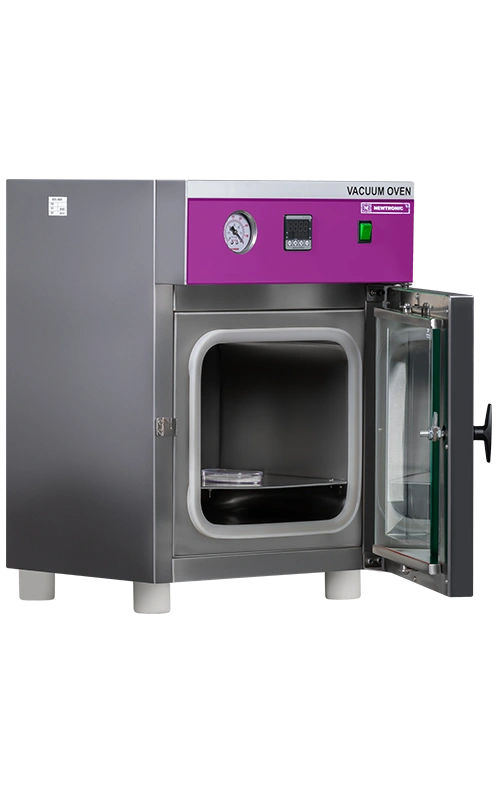

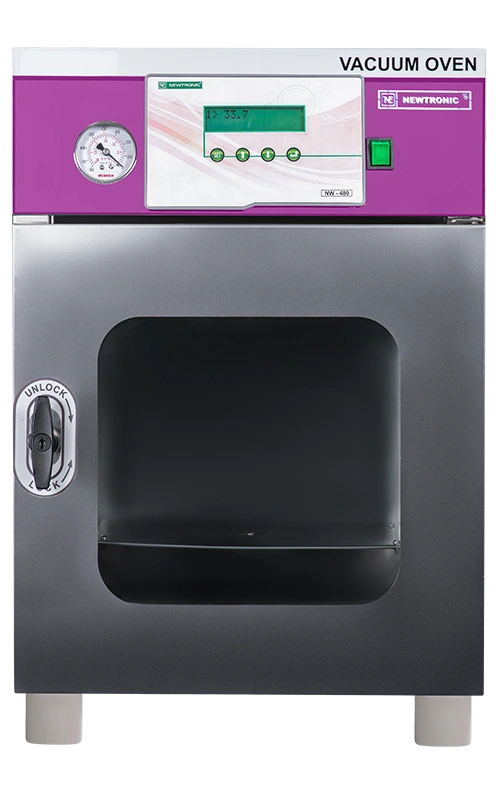

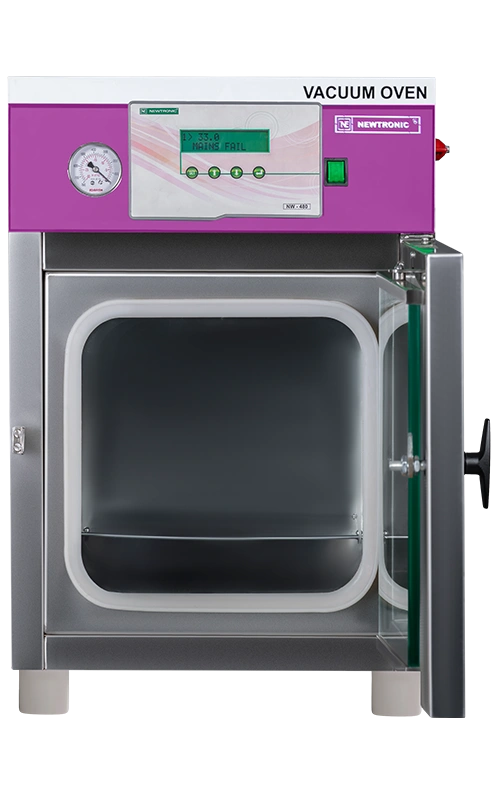

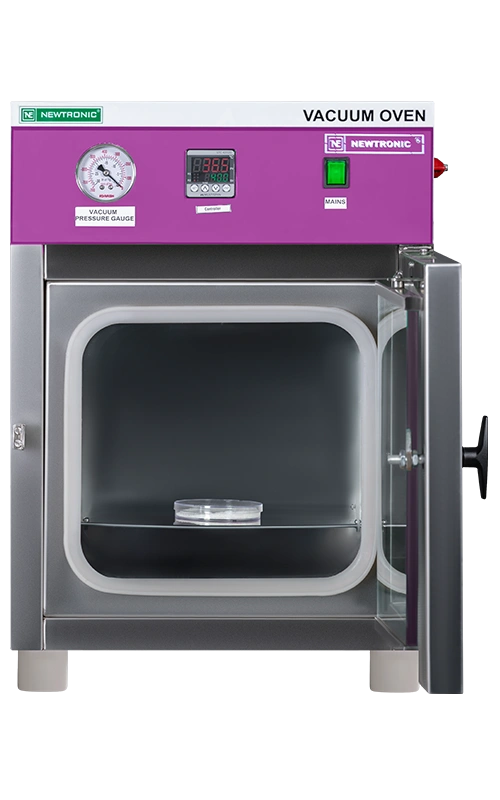

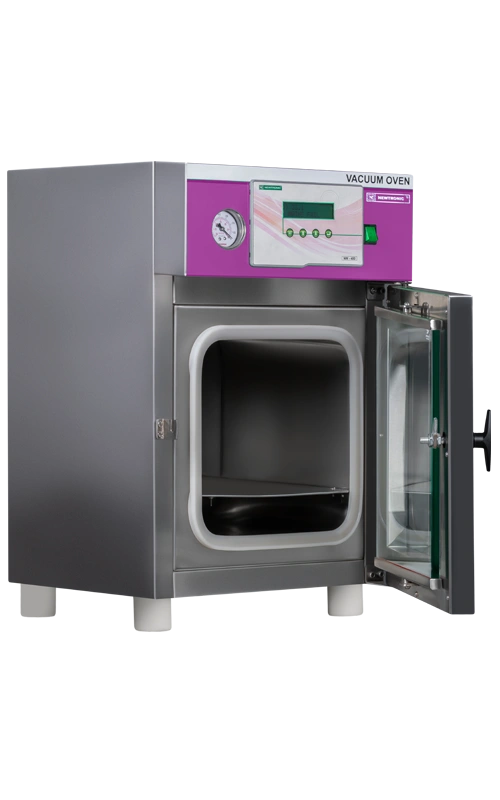

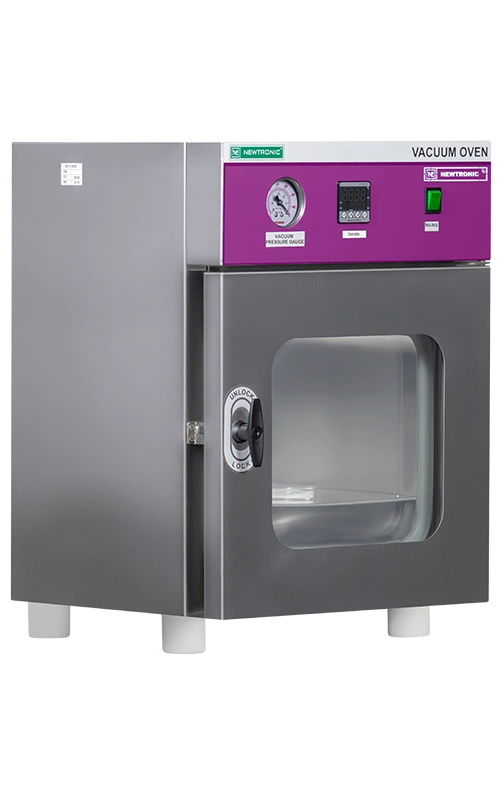

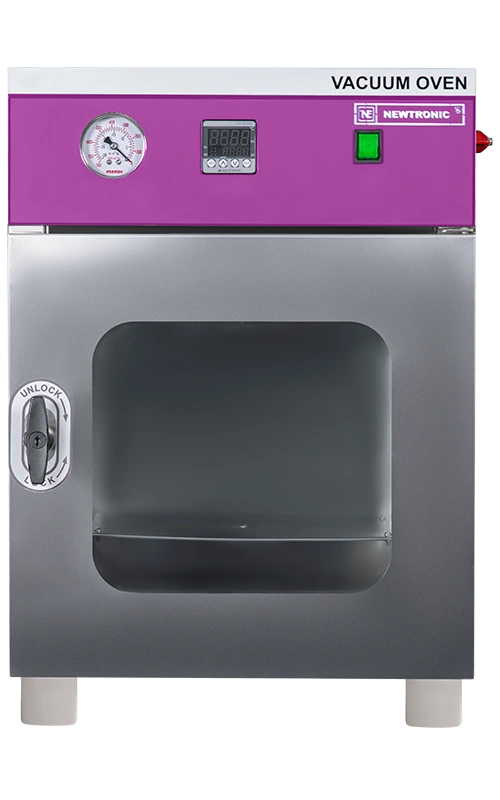

Vacuum Oven
Vacuum ovens units are fitted with highly accurate controller that allows gentle drying of heat sensitive materials & highly hygroscopic materials.

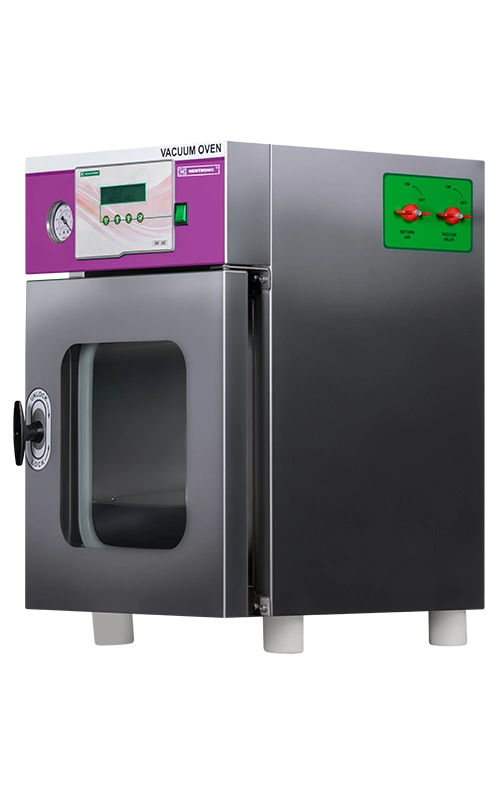

They come with a separate vacuum release valve to release the vacuum by gentle turn of the knob. An air release inlet is located below the tray to avoid sample disturbance due to air blowing.
The vacuum ovens can dry faster than the conventional ovens & avoid damage due to rapid temperature overshooting.
Features
Documentation And Training
Complete Range of Alarms
Temperature & Humidity Deviations, Door Opening, Water Supply Failure, Component Failure, Mains Failure.
Documentation & Training
IQ, OQ, PQ, Calibration certificates, Operations & maintenance manuals, GA & Electrical drawings, Material test certificates, Training to end-users.
Safety
Temperature Overshoot/Undershoot, Humidity Overshoot, Low water-level, Delay Timer to safeguard the Compressor, MCB to cut-off over-current supply, Standby Controlling Sensor upon failure of Primary, In Walk-in chambers door can be open from inside, Emergency Bell switch inside the Chamber
Business Sector
Lifescience
Biotechnology
Pharmaceuticals
Blood Bank
Features
| Temperature Range | 40°C to 200°C |
| The interior and the exterior of the chamber is made of stainless steel ( SS304) | The door is provided with silicon gasket & positive latch to maintain seal at all vacuum levels |
| Fitted with highly accurate controller that allows gentle drying of heat sensitive materials avoiding damage due to rapid temperature overshooting | Heater mounted below the tray, ensures rapid & equal heating without any thermal loss |
| Considerable reduction in drying time | Dries faster than the conventional oven | Door with glass window for viewing of the sample inside the chamber |
| Separate vacuum release valve releasing vacuum by gentle turning of the knob | High quality PT-100 Temperature Sensor |
| Separate vacuum connection valve preventing oil spilling in the oven | Safety Device : Electromagnetic relay |
| Vacuum pump connection provided at the back of the oven | Audio/Visual alarms for deviation |
| Calibrated vacuum gauge | Complete with DQ, IQ, OQ, PQ ,SOP & Maintenance Manual |
| Model | Capacity – CuFt. | Capacity – Litres | Internal Size – (H*W*D) mm | External Size – (H*W*D) mm | Trays Qty. | Approx. Weight (Kg.) – Eqip | Approx. Weight (Kg.) – Ship |
|---|---|---|---|---|---|---|---|
| NLVO1SE | 1 | 30 | 275 X 300 X 300 | 655 X 440 X 420 | 1 | 35 | 65 |
| Temperature Range | 20°C to 60°C |
| Temperature Accuracy | ± 0.5°C |
| Temperature Uniformity | ± 1°C |
| Humidity Range | 40% RH to 95% RH |
| Humidity Accuracy | ± 2% RH |
| Humidity Uniformity | ± 3% RH |
| Double walled with PUF insulation. | Stainless Steel trays |
| SS 304 Interior & Exterior either SS 304 or Mild Steel | Full-length inner glass door & metal door with gasket & lock on the outside |
| Internal LED lights | Forced air circulation for uniform temperature |
| PU wheels for easy movement | U-shaped SS tubular heaters |
| Non condensing steam injection type humidity system with standby heater & auto switch overs | CFC free cooling system consisting of hermetically sealed compressor coupled with evaporation coil & condenser |
| Stand by humidity system with booster humidification | Complete Operations driven through PLC with data logging capacity of upto 1000 readings |
| High speed Ethernet based communication | All operations through a single 7″ Color Touch Screen |
| High quality imported make T/Rh combo sensor with 4-20 mA output | Safety devices: Low & high temperature cut-off settable thermostats |
| Audio/Visual alarms for deviations | Complete with DQ, IQ, OQ, PQ & SOP & Maintenance Manual |
| ICDAS – A Common Software suitable for 20 nos. Newtronic make equipments | Door Access system (Numeric or Biometric) |
| 4pt. Temperature & Humidity Scanner | Mobile Alert system |
| Stand by Cooling System with auto switch overs (430 litre & above) | Remote alarm system suitable for 4 nos. Newtronic make equipments |
| Model | Capacity – CuFt. | Capacity – Litres | Internal Size – (HxWxD) mm | External Size – (HxWxD) mm | Trays Qty. | Tray Size – (WxD) mm | Approx. Weight – Eqip. Kg | Approx. Weight – Ship. Kg |
|---|---|---|---|---|---|---|---|---|
| NLHC7SI | 7 | 200 | 800 x 500 x 500 | 1315 x 660 x 985 | 3 | 430 x 460 | 150 | 225 |
| NLHC16SI | 16 | 430 | 1200 x 600 x 600 | 1715 x 760 x 1155 | 4 | 530 x 560 | 250 | 325 |
| NLHC26SI | 26 | 735 | 1500 x 700 x 700 | 2070 x 860 x 1255 | 5 | 630 x 660 | 275 | 350 |
| NLHC34SI | 34 | 1000 | 1500 x 800 x 800 | 2070 x 960 x 1355 | 5 | 730 x 760 | 350 | 425 |
| NLHC54SI | 54 | 1500 | 1500 x 1600 x 600 | 2070 x 1760 x 1155 | 10 | 695 x 560 | 350 | 450 |
| NLHC71SI | 71 | 2000 | 1500 x 1600 x 800 | 2070 x 1760 x 1355 | 10 | 695 x 760 | 375 | 475 |
