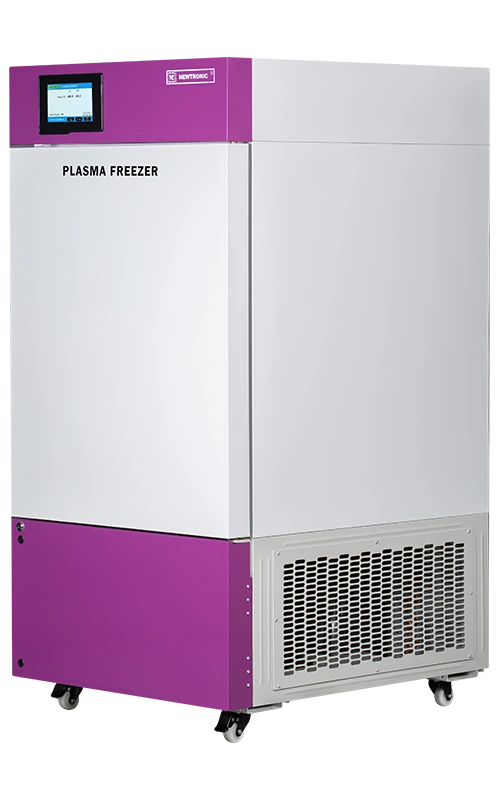

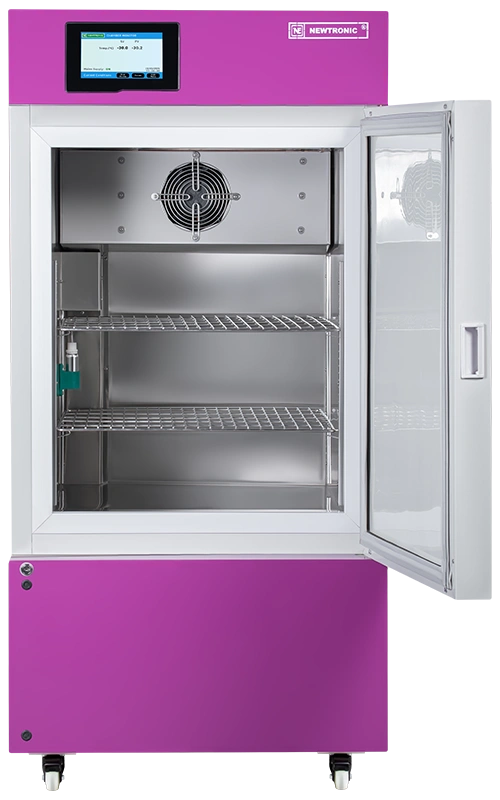

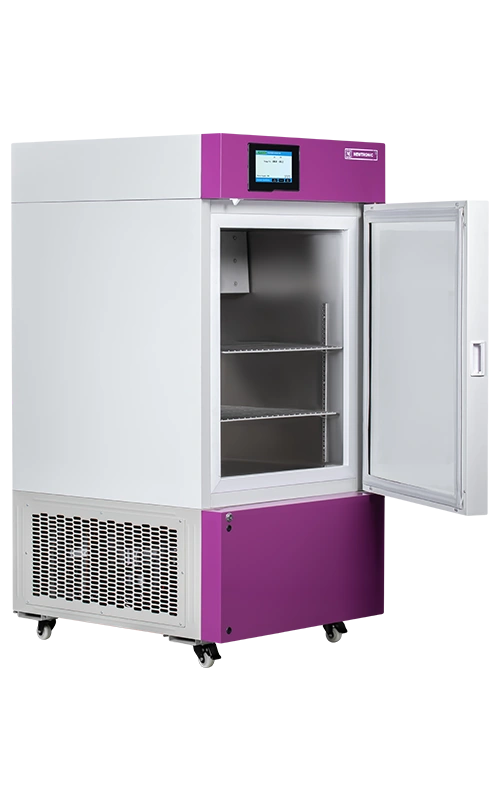

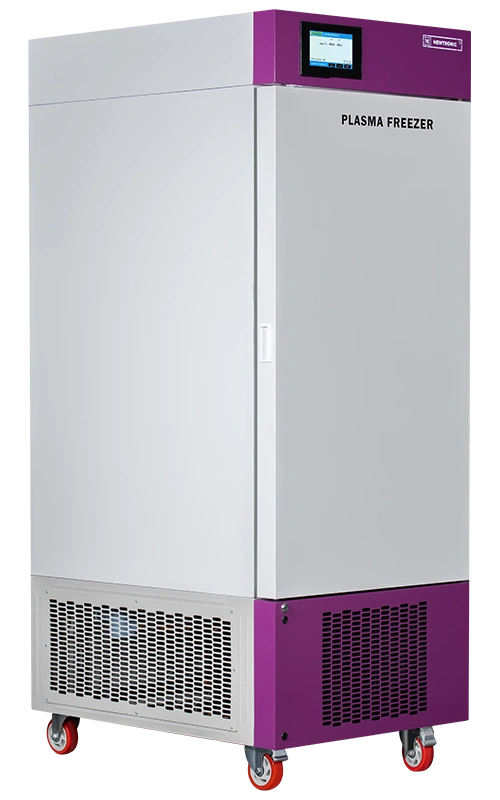

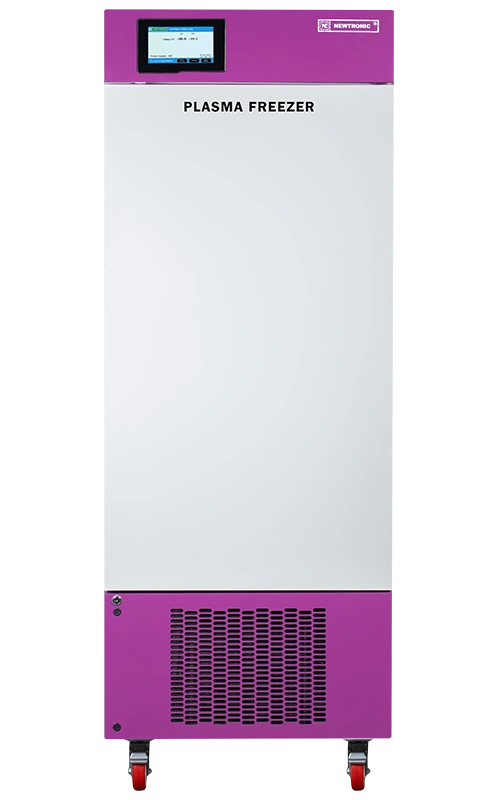

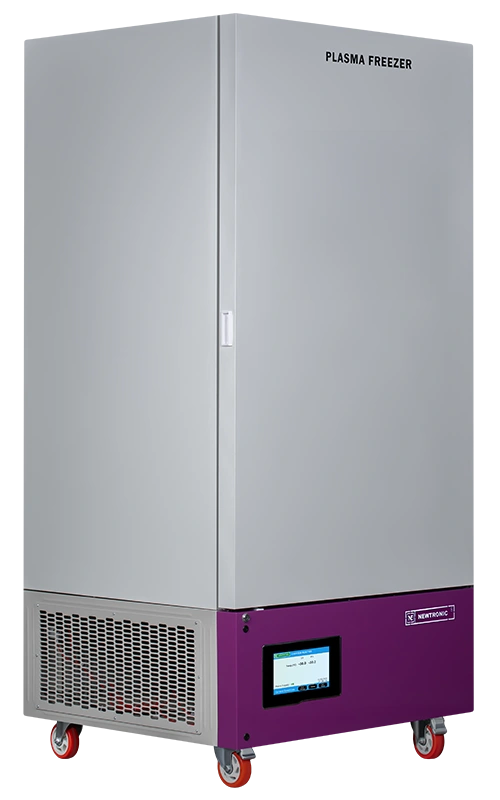

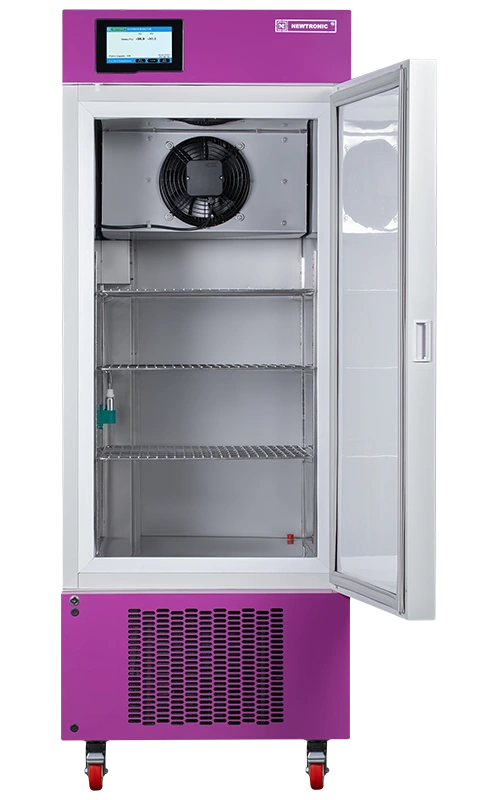

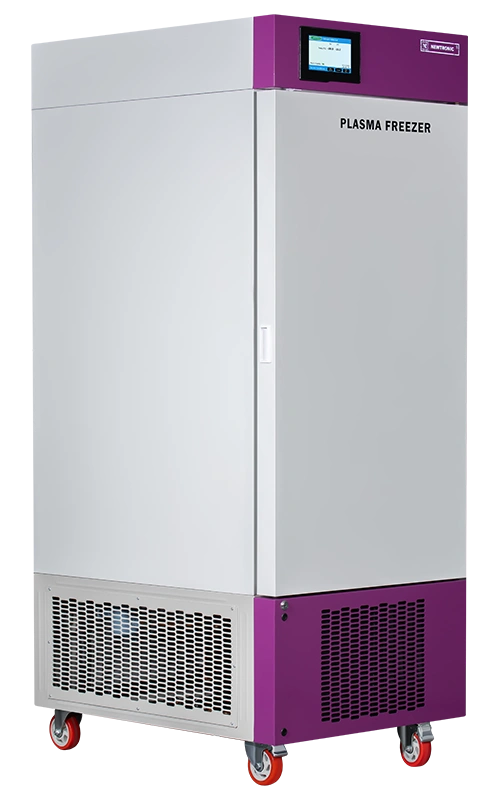

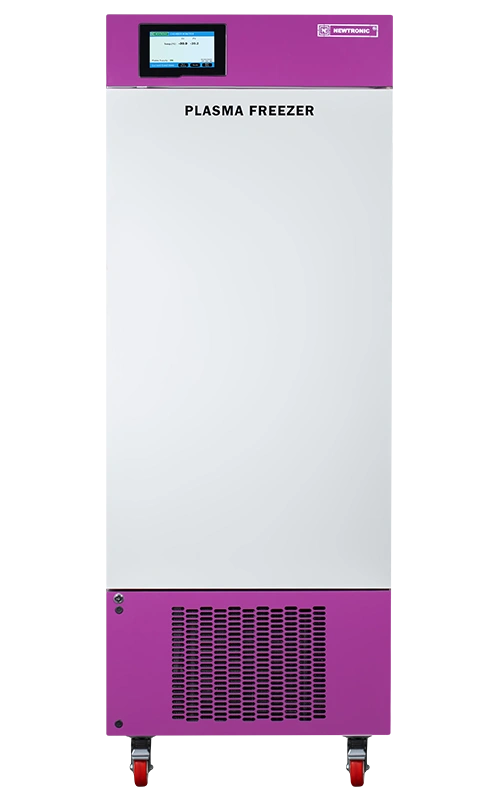

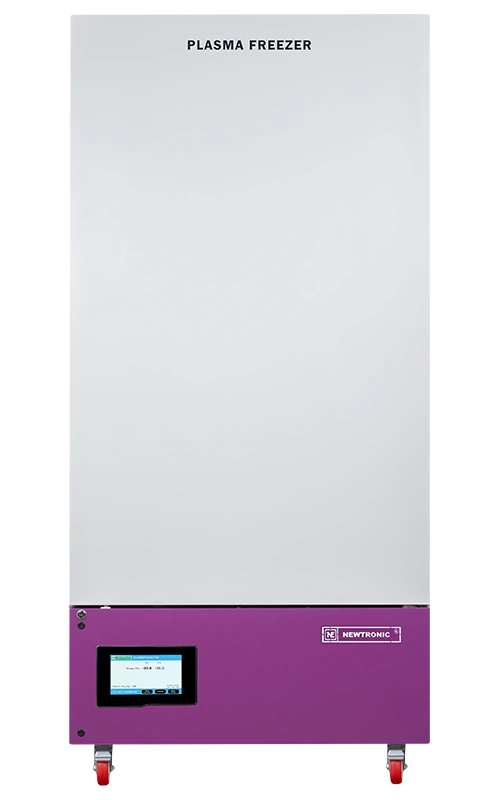

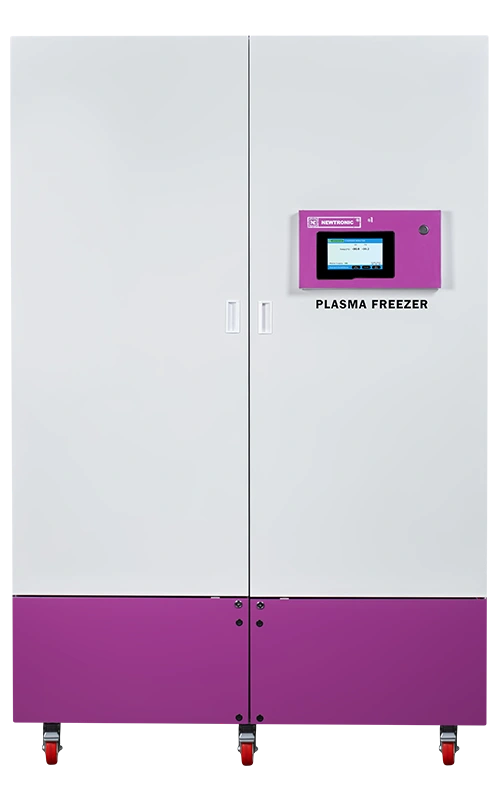

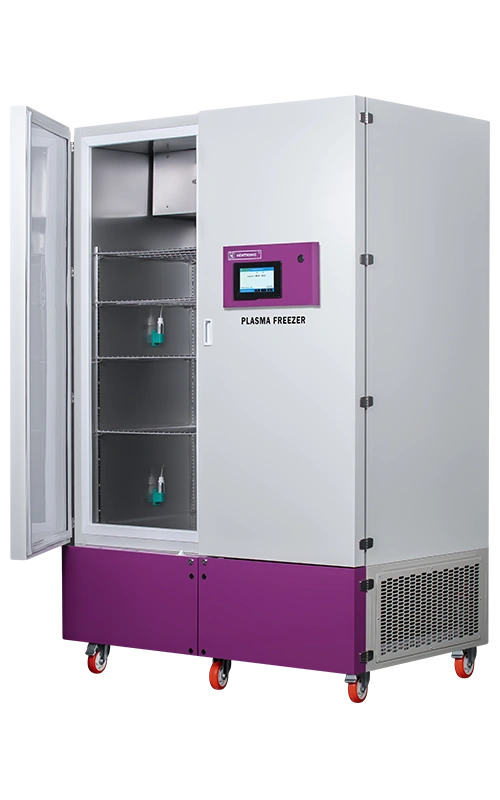

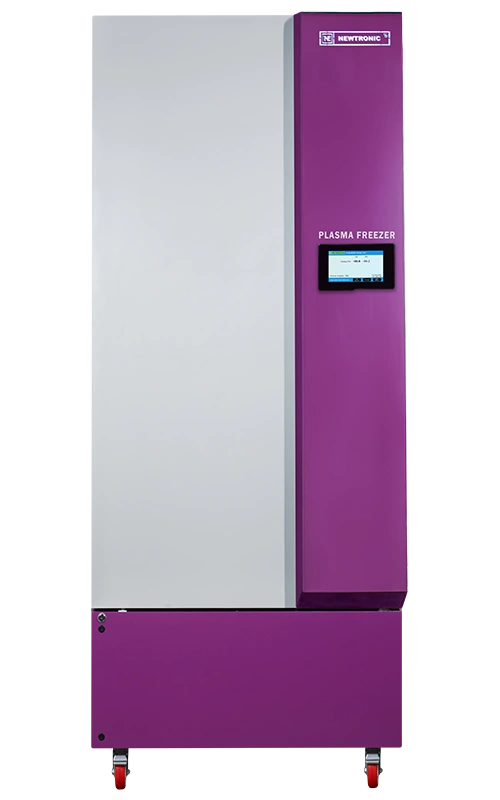

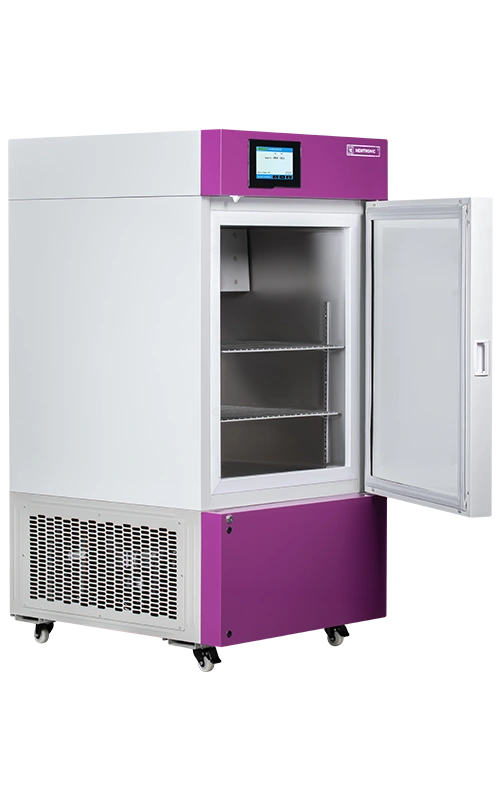

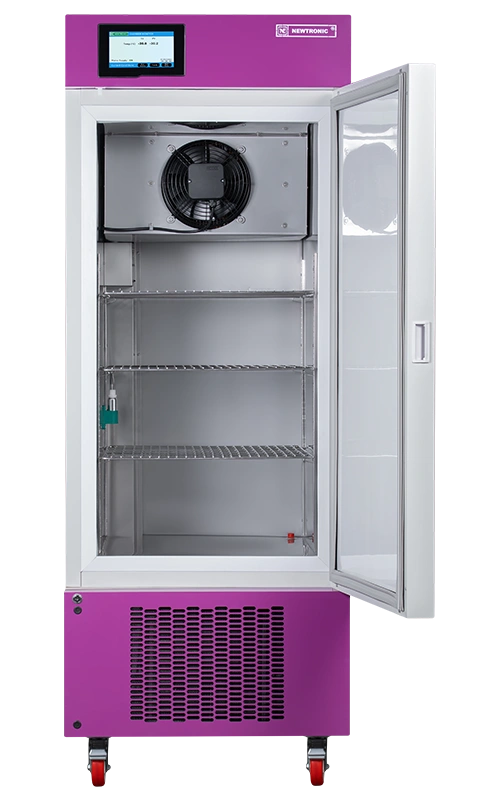

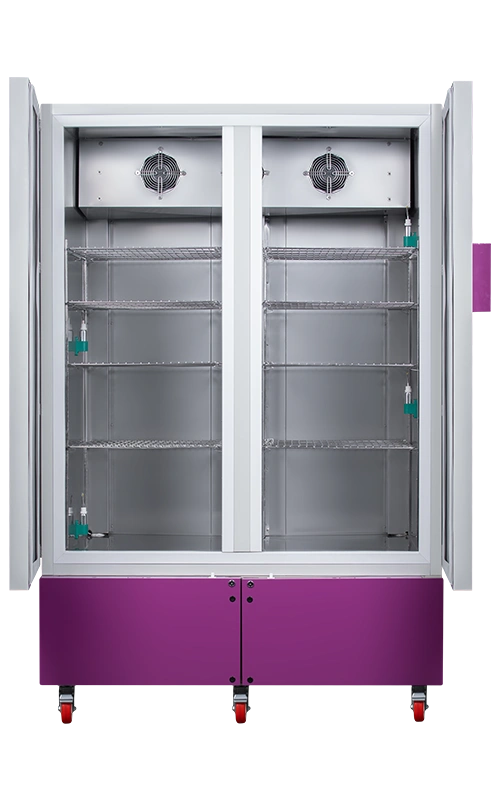

Plasma Freezers
Plasma is the most critical component of the blood system. It contains the vital mineral and salts that needs to be supplied to various parts of the body.
We have designed a plasma freezer that offers you a sturdy body, with a host of safety features that guarantees the safe storage of plasma components. Our product is capable to meet the regulations of hospitals, Laboratories, biomedical research centre and Universities.
Thus it becomes important to store plasma at a temperature below 30°C to – 40°C for the safe storage of frozen plasma, red cells, cryoprecipitate and platelet concentrates.
Features
Hi-Performance
Vacuum Release Port
Excellent Uniformity
Low Noise Design
Environment Friendly
Alarms
Business Sector
Lifescince
Biotechnology
Blood Bank
Features
| Temperature Range | 30°C to – 40°C |
| Temperature Accuracy | ± 3°C |
| Temperature Uniformity | ± 10°C |
| Double walled with 80mm PUF insulated modular panels with easy on-site assembly | System is made up of split type condenser unit in well-ventilated area to avoid throw of hot air in the room |
| SS 304 Interior & Exterior either SS 304 or Powder Coated G.I. | Complete with IQ, OQ, PQ & Operations & Maintenance Manual |
| Stainless Steel Trays | Complete Operations driven through PLC with data logging capacity of upto 1000 readings & email facility |
| Forced air circulation for uniform temperature | High speed Ethernet based communication |
| Illuminated working area | All operations through a single 4″ Color Touch Screen |
| Audio/Visual alarms for deviations | High-quality German Make temperature humidity sensor with 4-20mA output |
| Safety devices: Low & High temperature cut-off | |
| CFC free cooling system consisting of hermetically sealed compressor coupled with evaporation coil & condenser |
| ICDAS – A Common Software suitable for 20 nos. Newtronic make equipments | Door Access system |
| Temperature Sensors | Mobile Alert system |
| Stand by Cooling System with auto switch overs (Single system) | Remote alarm system suitable for 4 nos. Newtronic make equipments |
| Model | Capacity-cuft | Internal Size-W*D*H (mm) | External Size-W*D*H (mm) | Number of Shelves | Equipment Weight (Kg) |
|---|---|---|---|---|---|
| NLPF7MI | 200 | 550X 545 X 670 | 835 X 870 X 1625 | 2 | 150 |
| NLPF11MI | 300 | 767 X 470 X 570 | 835 X 935 X 1910 | 3 | 200 |
| NLPF14MI | 400 | 550 X 610 X 900 | 835 X 1055 X 2010 | 4 | 250 |
| Temperature Range | 20°C to 60°C |
| Temperature Accuracy | ± 0.5°C |
| Temperature Uniformity | ± 1°C |
| Humidity Range | 40% RH to 95% RH |
| Humidity Accuracy | ± 2% RH |
| Humidity Uniformity | ± 3% RH |
| Double walled with PUF insulation. | Stainless Steel trays |
| SS 304 Interior & Exterior either SS 304 or Mild Steel | Full-length inner glass door & metal door with gasket & lock on the outside |
| Internal LED lights | Forced air circulation for uniform temperature |
| PU wheels for easy movement | U-shaped SS tubular heaters |
| Non condensing steam injection type humidity system with standby heater & auto switch overs | CFC free cooling system consisting of hermetically sealed compressor coupled with evaporation coil & condenser |
| Stand by humidity system with booster humidification | Complete Operations driven through PLC with data logging capacity of upto 1000 readings |
| High speed Ethernet based communication | All operations through a single 7″ Color Touch Screen |
| High quality imported make T/Rh combo sensor with 4-20 mA output | Safety devices: Low & high temperature cut-off settable thermostats |
| Audio/Visual alarms for deviations | Complete with DQ, IQ, OQ, PQ & SOP & Maintenance Manual |
| ICDAS – A Common Software suitable for 20 nos. Newtronic make equipments | Door Access system (Numeric or Biometric) |
| 4pt. Temperature & Humidity Scanner | Mobile Alert system |
| Stand by Cooling System with auto switch overs (430 litre & above) | Remote alarm system suitable for 4 nos. Newtronic make equipments |
| Model | Capacity – CuFt. | Capacity – Litres | Internal Size – (HxWxD) mm | External Size – (HxWxD) mm | Trays Qty. | Tray Size – (WxD) mm | Approx. Weight – Eqip. Kg | Approx. Weight – Ship. Kg |
|---|---|---|---|---|---|---|---|---|
| NLHC7SI | 7 | 200 | 800 x 500 x 500 | 1315 x 660 x 985 | 3 | 430 x 460 | 150 | 225 |
| NLHC16SI | 16 | 430 | 1200 x 600 x 600 | 1715 x 760 x 1155 | 4 | 530 x 560 | 250 | 325 |
| NLHC26SI | 26 | 735 | 1500 x 700 x 700 | 2070 x 860 x 1255 | 5 | 630 x 660 | 275 | 350 |
| NLHC34SI | 34 | 1000 | 1500 x 800 x 800 | 2070 x 960 x 1355 | 5 | 730 x 760 | 350 | 425 |
| NLHC54SI | 54 | 1500 | 1500 x 1600 x 600 | 2070 x 1760 x 1155 | 10 | 695 x 560 | 350 | 450 |
| NLHC71SI | 71 | 2000 | 1500 x 1600 x 800 | 2070 x 1760 x 1355 | 10 | 695 x 760 | 375 | 475 |
