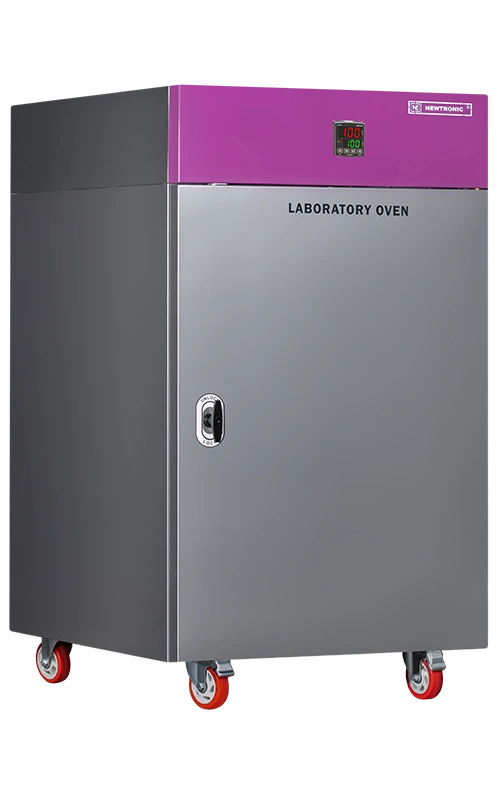

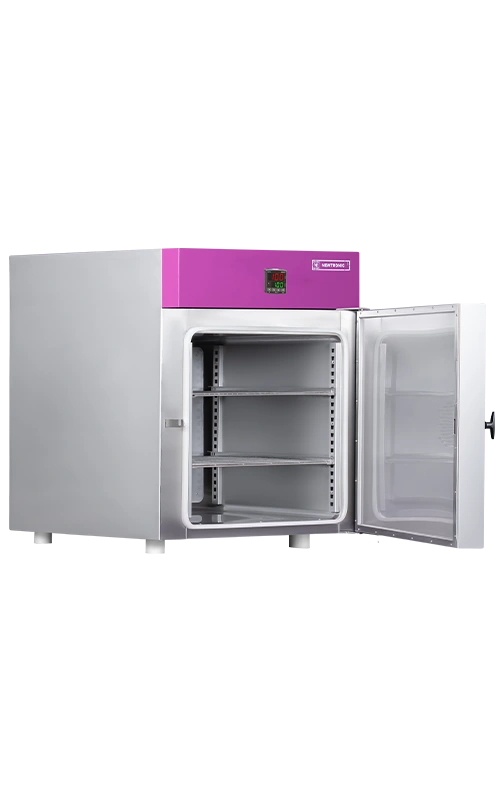

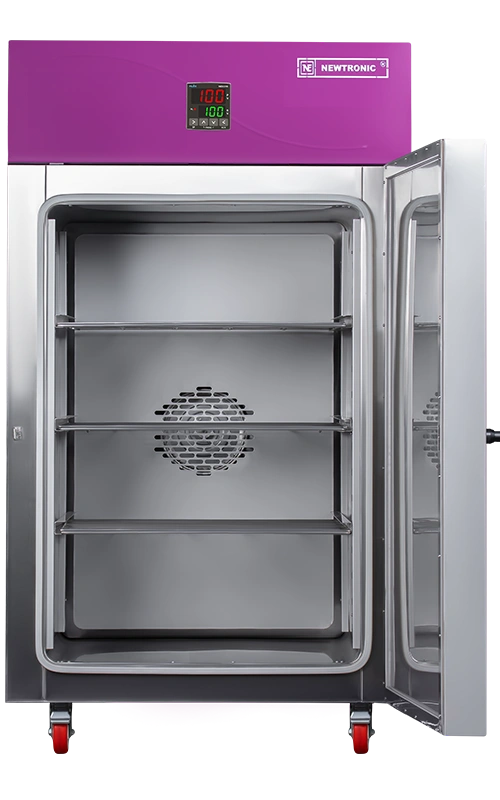

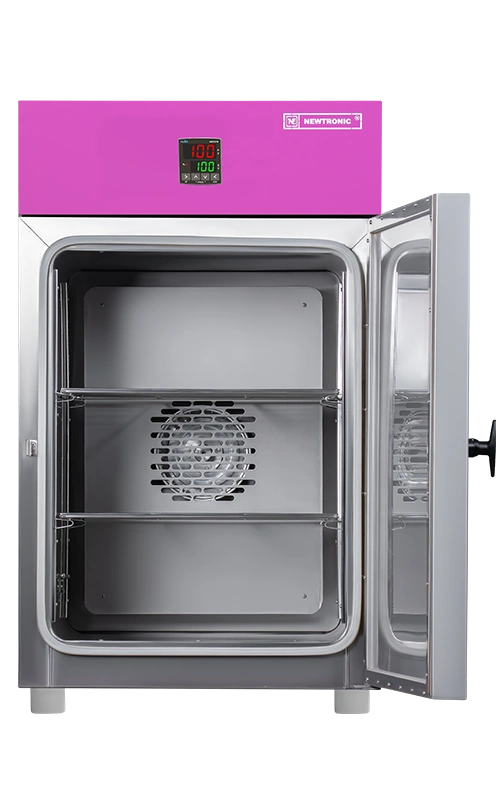

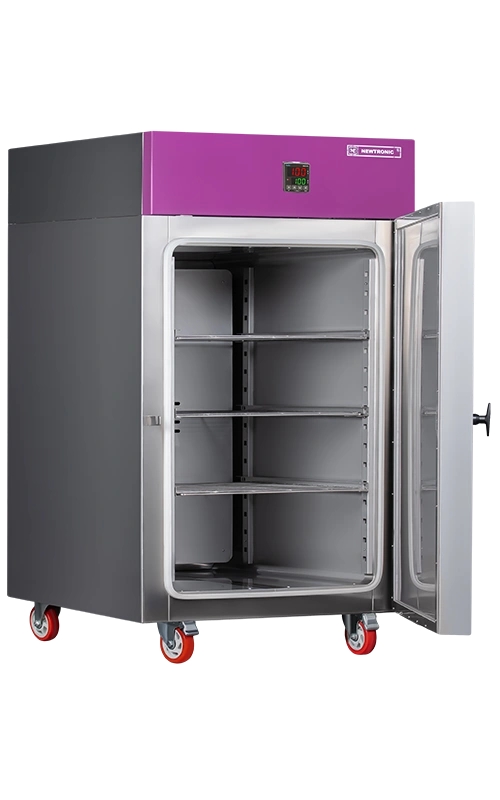

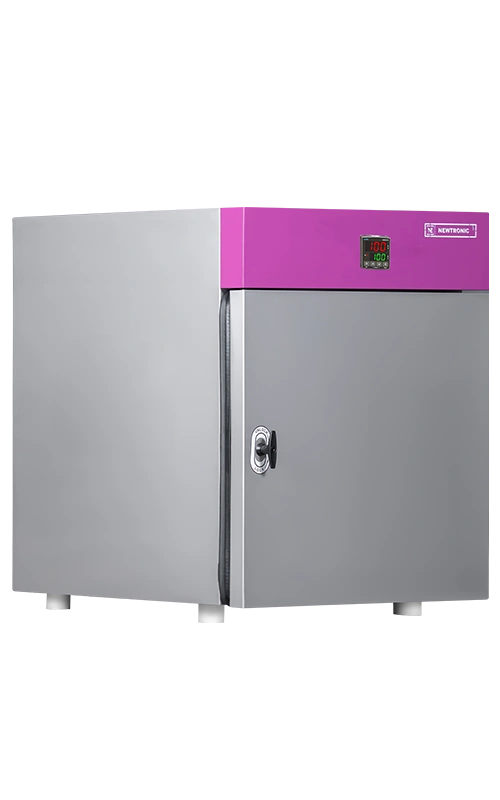

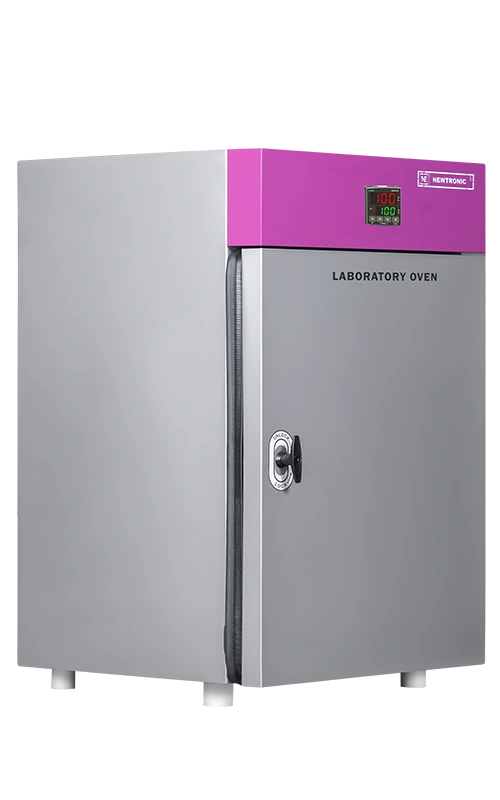

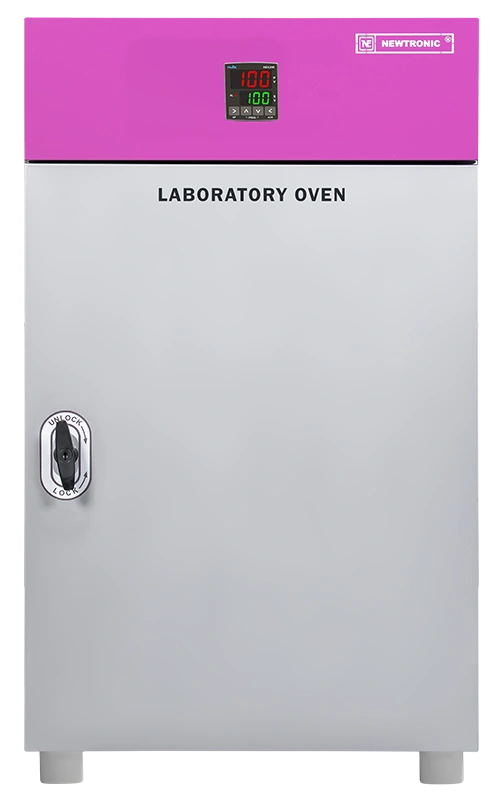

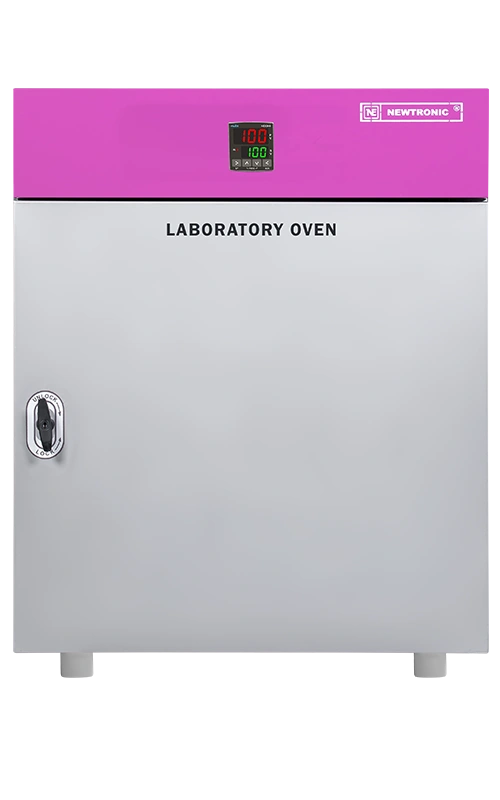

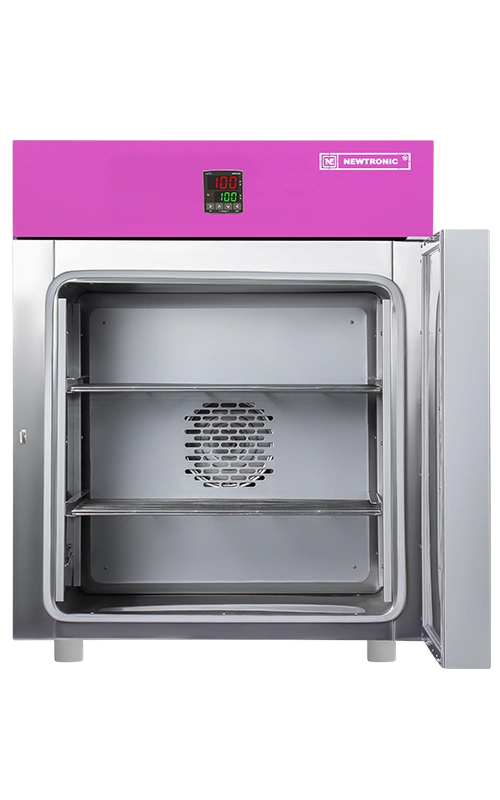

Laboratory Oven

Enquire Now
Laboratory Ovens are also used to measure the loss on drying & are also referred to as LOD Ovens or Hot Air Ovens.

Units are equipped with Stainless steel trays, high quality PT-100 sensor & a microprocessor based controlling system with 2 line alphanumerical LED display. Alarms are generated for any deviations. The PID controller comes with an integrated timer functionality from 0 to 99 hours for ramp & soak functionality.

These units are primarily used in applications which require rapid drying and sterilization. Totally homogenous temperature distribution, rapid dynamic response and a special air turbine developed by us which has higher output have made it a genuine time-saving device.

Features

Complete Range of Alarms

Temperature & Humidity Deviations, Door Opening, Water Supply Failure, Component Failure, Mains Failure.

Documentation & Training

IQ, OQ, PQ, Calibration certificates, Operations & maintenance manuals, GA & Electrical drawings, Material test certificates, Training to end-users.

Safety

Temperature Overshoot/Undershoot, Humidity Overshoot, Low water-level, Delay Timer to safeguard the Compressor, MCB to cut-off over-current supply, Standby Controlling Sensor upon failure of Primary, In Walk-in chambers door can be open from inside, Emergency Bell switch inside the Chamber

Business Sector

Lifescience

Biotechnology

Biotechnology

Biotechnology

Explore More

lifescience

lifescience

Explore More
Features
Temperature Range 20°C to 60°C
Temperature Accuracy ± 0.5°C
Temperature Uniformity ± 1°C
Humidity Range 40% RH to 95% RH
Humidity Accuracy ± 2% RH
Humidity Uniformity ± 3% RH
Double walled with PUF insulation. Stainless Steel trays
SS 304 Interior & Exterior either SS 304 or Mild Steel Full-length inner glass door & metal door with gasket & lock on the outside
Internal LED lights Forced air circulation for uniform temperature
PU wheels for easy movement U-shaped SS tubular heaters
Non condensing steam injection type humidity system with standby heater & auto switch overs CFC free cooling system consisting of hermetically sealed compressor coupled with evaporation coil & condenser
Stand by humidity system with booster humidification Complete Operations driven through PLC with data logging capacity of upto 1000 readings
High speed Ethernet based communication All operations through a single 7″ Color Touch Screen
High quality imported make T/Rh combo sensor with 4-20 mA output Safety devices: Low & high temperature cut-off settable thermostats
Audio/Visual alarms for deviations Complete with DQ, IQ, OQ, PQ & SOP & Maintenance Manual
ICDAS – A Common Software suitable for 20 nos. Newtronic make equipments Door Access system (Numeric or Biometric)
4pt. Temperature & Humidity Scanner Mobile Alert system
Stand by Cooling System with auto switch overs (430 litre & above) Remote alarm system suitable for 4 nos. Newtronic make equipments
ModelCapacity – CuFt.Capacity – LitresInternal Size – (HxWxD) mmExternal Size – (HxWxD) mmTrays Qty.Tray Size – (WxD) mmApprox. Weight – Eqip. KgApprox. Weight – Ship. Kg
NLHC7SI 7 200 800 x 500 x 500 1315 x 660 x 985 3 430 x 460 150 225
NLHC16SI 16 430 1200 x 600 x 600 1715 x 760 x 1155 4 530 x 560 250 325
NLHC26SI 26 735 1500 x 700 x 700 2070 x 860 x 1255 5 630 x 660 275 350
NLHC34SI 34 1000 1500 x 800 x 800 2070 x 960 x 1355 5 730 x 760 350 425
NLHC54SI 54 1500 1500 x 1600 x 600 2070 x 1760 x 1155 10 695 x 560 350 450
NLHC71SI 71 2000 1500 x 1600 x 800 2070 x 1760 x 1355 10 695 x 760 375 475
Temperature Range 50°C to 300°C
Double walled with mineral wool insulation. Auto tune PID controller with 2 line LED display as well as ramp & soak facility
SS 304 Interior & Exterior either SS 304 or Mild Steel High quality PT-100 Temperature Sensor
Mesh type Stainless Steel trays Safety Device : High Temperature cut-off settable thermostats
Forced air circulation for uniform temperature Audio/Visual alarms for deviation
SS tubular heater Complete with DQ, IQ, OQ, PQ ,SOP & Maintenance Manual
ICDAS -A Single Software installation for all Newtronic make equipments Remote alarm system suitable for upto 4 nos. Newtronic make equipments
Mobile Alert System
ModelCapacity – CuFt.Capacity – LitresInternal Size – (HxWxD) mmExternal Size – (HxWxD) mmTray Qty. Tray Size – (WxD) (mm)
NLLO3SE 3 90 450 x 450 x 450 800 x 560 x 760 2 430 x 430
NLLO5SE 5 121 600 x 450 x 450 950 x 560 x 820 2 430 x 430
NLLO8SE 8 216 600 x 600 x 600 950 x 760 x 1030 2 560 x 560
NLLO12SE 12 324 900 x 600 x 600 1410 x 760 x 1060 3 560 x 560
NLLO16SE 16 430 1200 x 600 x 600 1710 x 760 x 1125 4 560 x 560
NLLO26SE 26 735 1500 x 700 x 700 2010 x 860 x 1225 5 660 x 660
NLLO34SE 34 1000 1500 x 800 x 800 2010 x 960 x 1325 5 760 x 760
