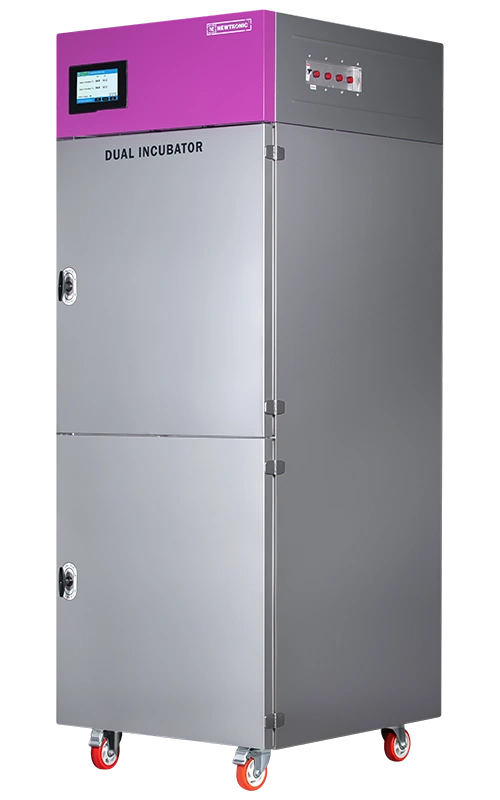

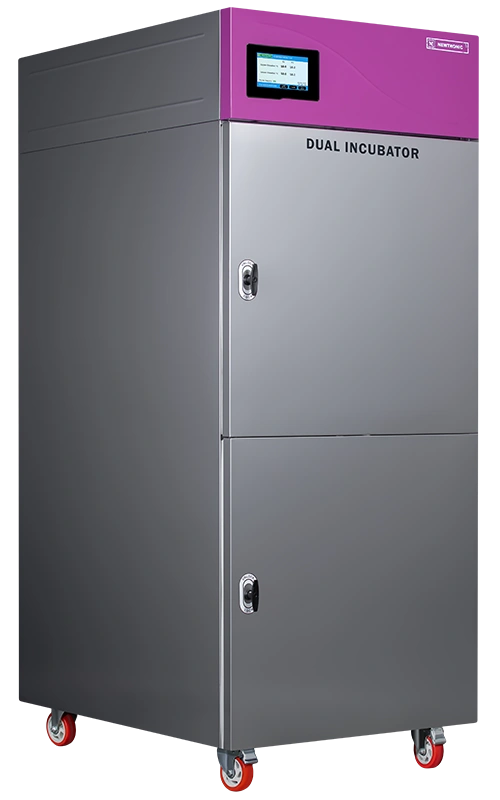

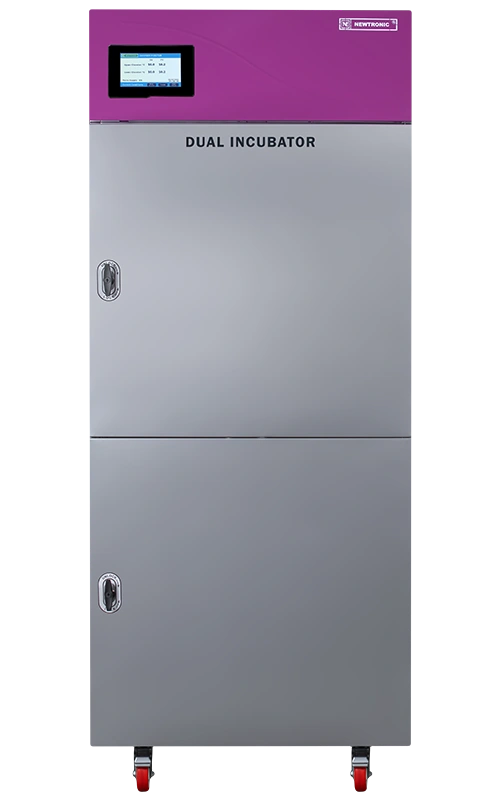

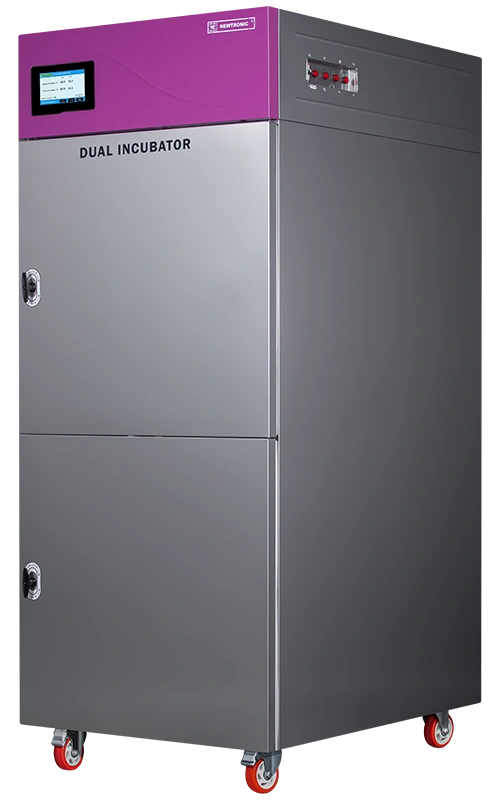

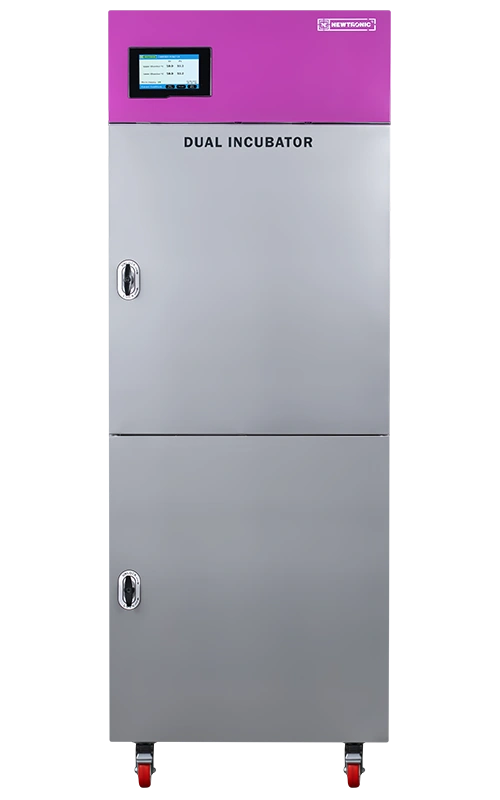

Dual Incubators
Newtronic’s Dual Incubator are ideal for the growth & storage of bacterial cultures, gentle incubation & conditioning and Media Preparation.
Media Prepartion & Culture growth at temperatures of 22.5°C (±2.5°C) & 32.5°C (±2.5°C) have become a standard practice in any Microbiology or ARD labs.
The chambers ensure consistent performance at any temperature within a range of 10°C to 60 °C at an accuracy of ±0.5°C & at an uniformity of ±1°C.

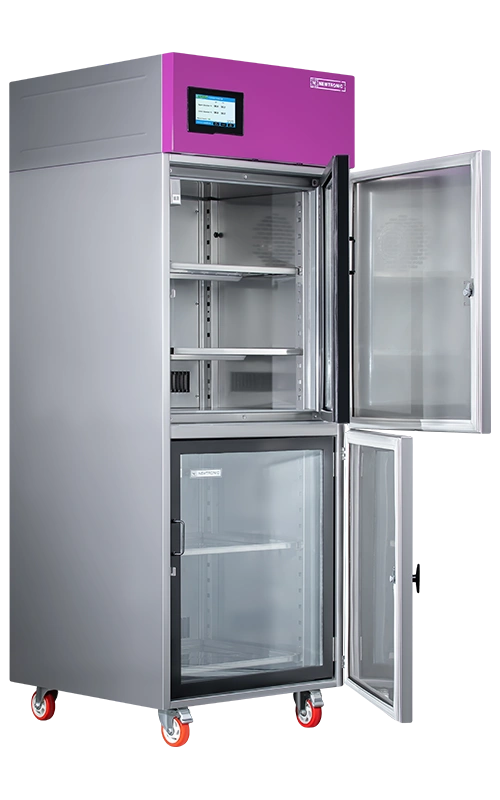

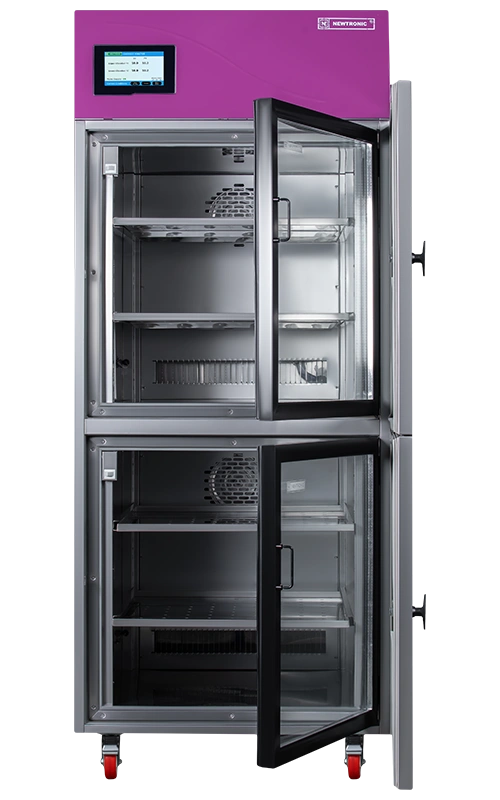

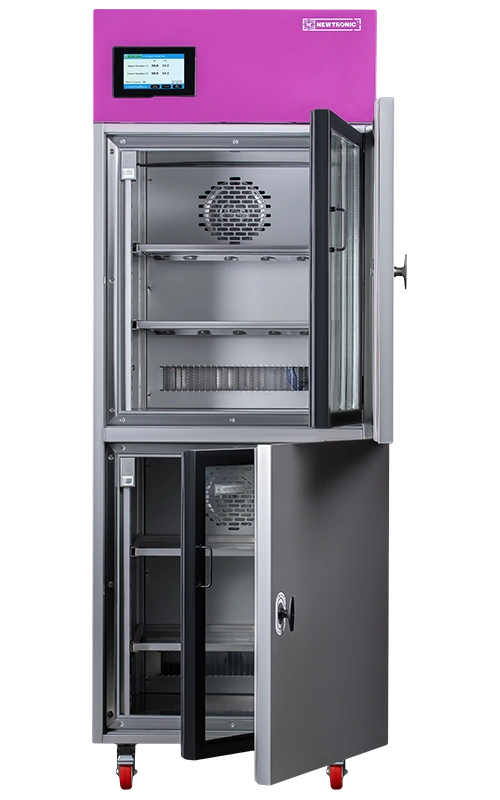

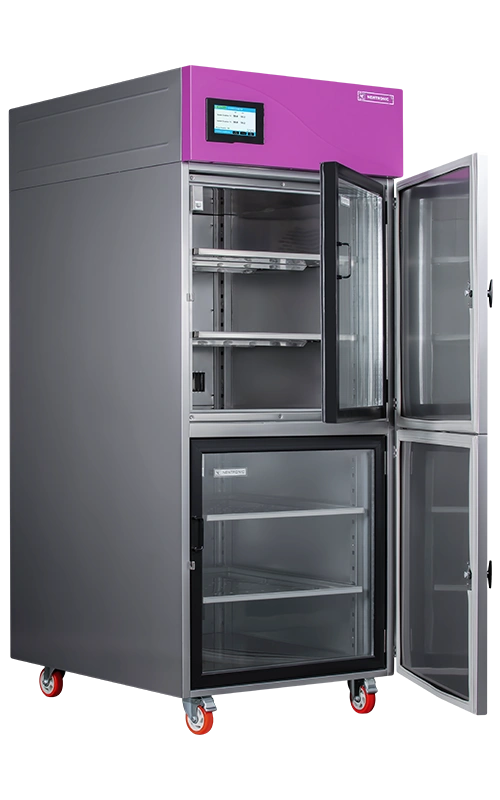

The chambers are provided with a glass door for sample viewing & quick retrieval. They are connected through Ethernet to state-of-the-art 21 CFR Part 11 ready software that provide tools for viewing, trending, alarm management, audit trails, MKT & many other such features so as to comply with regulatory guidelines.
Ethernet Communication
Documentation And Training
ETHERNET COMMUNICATION
Offers high-speed data transfer, surpassing serial (RS-485) communication, and adheres to a global standard for communication protocol, enabling data operations from any PC over the LAN without requiring a separate PC interface.
Complete Range of Alarms
Temperature & Humidity Deviations, Door Opening, Water Supply Failure, Component Failure, Mains Failure.
Documentation & Training
IQ, OQ, PQ, Calibration certificates, Operations & maintenance manuals, GA & Electrical drawings, Material test certificates, Training to end-users.
ICDAS Software
21 CFR Part 11 Ready, Single software suitable for upto 20 equipments, Automatic daily data back-up, Alarm logs. Alarm acknowledgement with e-signatures, Audit trails, MKT Calculations, Graphical viewing & data trending, Data export in pdf format.
Mobile Alert
Time of Alarm transmission, Name of Equipment, Transmitted message(Equipment name, alarm time,type of alarm & limits).
Safety
Temperature Overshoot/Undershoot, Delay Timer to safeguard the Compressor, MCB to cut-off over-current supply, Standby Controlling Sensor upon failure of Primary, Emergency Bell switch inside the Chamber.
Pharmaceuticals
Cosmetics
Food & Beverages
Blood Bank
Packaging
| Upper Temperature Range | 2°C to 8°C |
| Lower Temperature Range | -10°C to -25°C |
| Double wall PUF insulation | Interior SS 304 & Exterior Mild Steel |
| Stainless Steel Trays | PU Wheels for easy movement |
| Doors with magnetic gasket for all airtight sealing | Forced air circulation for uniform temperature |
| CFC free cooling system consisting of hermetically sealed compressor coupled with evaporation coil & condenser | Complete operation are driven through IOT-enabled Controller with data logging capacity of upto 1000 readings |
| High speed Ethernet based communication | High-quality PT-100 Temperature sensor |
| All operations through a single 7″ Color Touch Screen Display | Safety devices: Low Temperature cut-off settable thermostats |
| Audio/Visual alarms for deviations | Complete with DQ, IQ, OQ, PQ ,SOP & Maintenance Manual |
| ICDAS -A Single Software installation for all Newtronic make equipments | Remote alarm system suitable for upto 4 nos. Newtronic make equipments |
| Mobile Alert System |
| Model | Capacity – CuFt. | Capacity – Litres | Internal Size – (HxWxD) mm | External Size – (HxWxD) mm | Tray Qty. | Tray Size – (WxD) mm | Approx. Weight – Eqip. Kg | Approx. Weight – Ship. Kg |
|---|---|---|---|---|---|---|---|---|
| NLDC14SI | Upper – 7 | Upper – 200 | Upper – 690 x 600 x 500 | 2050 X 740 X 985 | Upper – 2 | 530 x 460 | 300 | 375 |
| NLDC14SI | Lower – 7 | Lower – 200 | Lower – 690 x 600 x 500 | 2050 X 740 X 985 | Lower – 2 | 530 x 460 | 300 | 375 |
| NLDC28SI | Upper – 14 | Upper – 400 | Upper – 690 x 700 x 800 | 2050 X 840 X 1285 | Upper – 2 | 630 X 760 | 375 | 450 |
| NLDC28SI | Lower – 14 | Lower – 400 | Lower – 690 x 700 x 800 | 2050 X 840 X 1285 | Lower – 2 | 630 X 760 | 375 | 450 |
| Temperature Range | 20°C to 60°C |
| Temperature Accuracy | ± 0.5°C |
| Temperature Uniformity | ± 1°C |
| Humidity Range | 40% RH to 95% RH |
| Humidity Accuracy | ± 2% RH |
| Humidity Uniformity | ± 3% RH |
| Double walled with PUF insulation. | Stainless Steel trays |
| SS 304 Interior & Exterior either SS 304 or Mild Steel | Full-length inner glass door & metal door with gasket & lock on the outside |
| Internal LED lights | Forced air circulation for uniform temperature |
| PU wheels for easy movement | U-shaped SS tubular heaters |
| Non condensing steam injection type humidity system with standby heater & auto switch overs | CFC free cooling system consisting of hermetically sealed compressor coupled with evaporation coil & condenser |
| Stand by humidity system with booster humidification | Complete Operations driven through PLC with data logging capacity of upto 1000 readings |
| High speed Ethernet based communication | All operations through a single 7″ Color Touch Screen |
| High quality imported make T/Rh combo sensor with 4-20 mA output | Safety devices: Low & high temperature cut-off settable thermostats |
| Audio/Visual alarms for deviations | Complete with DQ, IQ, OQ, PQ & SOP & Maintenance Manual |
| ICDAS – A Common Software suitable for 20 nos. Newtronic make equipments | Door Access system (Numeric or Biometric) |
| 4pt. Temperature & Humidity Scanner | Mobile Alert system |
| Stand by Cooling System with auto switch overs (430 litre & above) | Remote alarm system suitable for 4 nos. Newtronic make equipments |
| Model | Capacity – CuFt. | Capacity – Litres | Internal Size – (HxWxD) mm | External Size – (HxWxD) mm | Trays Qty. | Tray Size – (WxD) mm | Approx. Weight – Eqip. Kg | Approx. Weight – Ship. Kg |
|---|---|---|---|---|---|---|---|---|
| NLHC7SI | 7 | 200 | 800 x 500 x 500 | 1315 x 660 x 985 | 3 | 430 x 460 | 150 | 225 |
| NLHC16SI | 16 | 430 | 1200 x 600 x 600 | 1715 x 760 x 1155 | 4 | 530 x 560 | 250 | 325 |
| NLHC26SI | 26 | 735 | 1500 x 700 x 700 | 2070 x 860 x 1255 | 5 | 630 x 660 | 275 | 350 |
| NLHC34SI | 34 | 1000 | 1500 x 800 x 800 | 2070 x 960 x 1355 | 5 | 730 x 760 | 350 | 425 |
| NLHC54SI | 54 | 1500 | 1500 x 1600 x 600 | 2070 x 1760 x 1155 | 10 | 695 x 560 | 350 | 450 |
| NLHC71SI | 71 | 2000 | 1500 x 1600 x 800 | 2070 x 1760 x 1355 | 10 | 695 x 760 | 375 | 475 |
