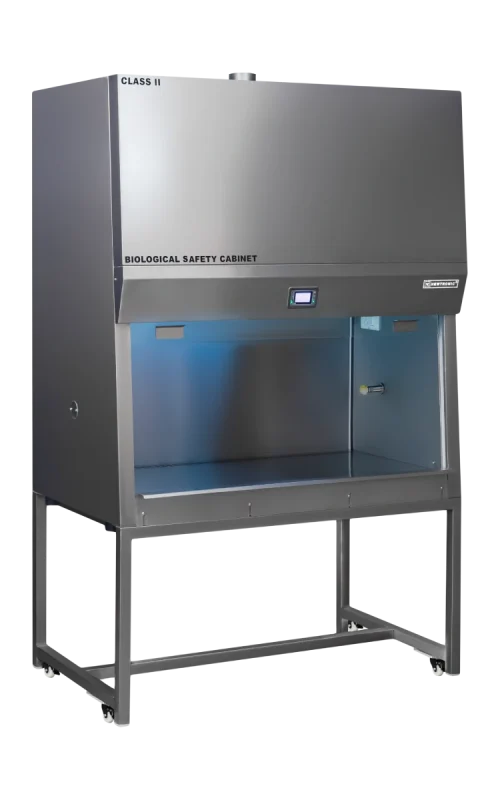

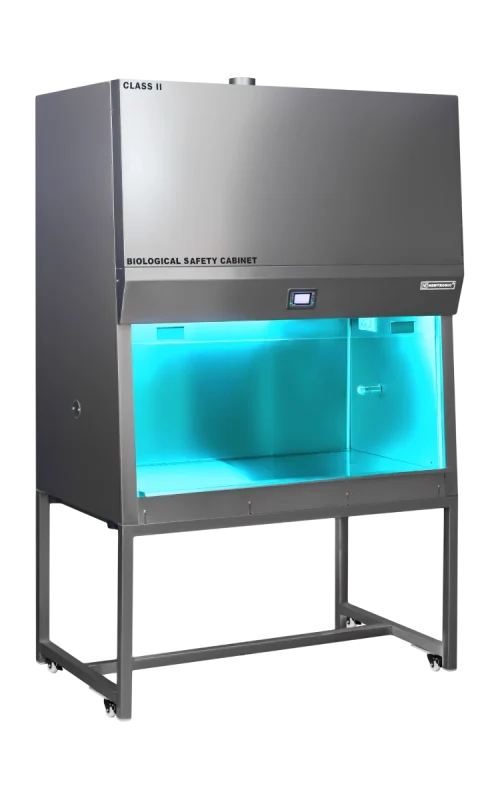

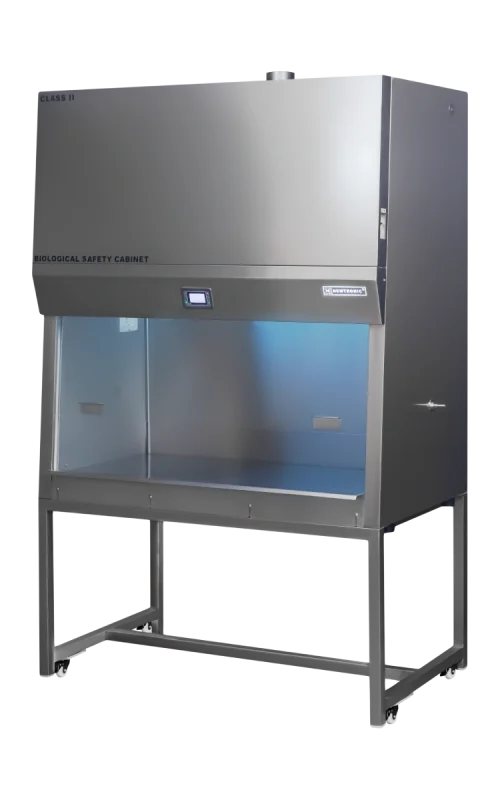

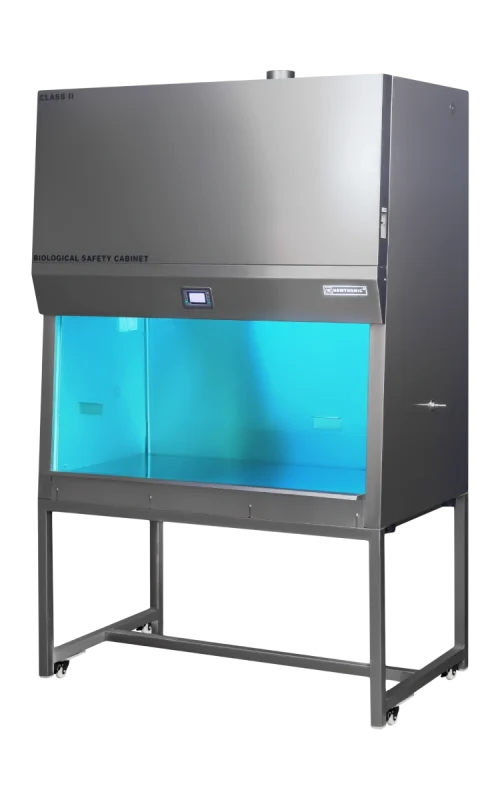

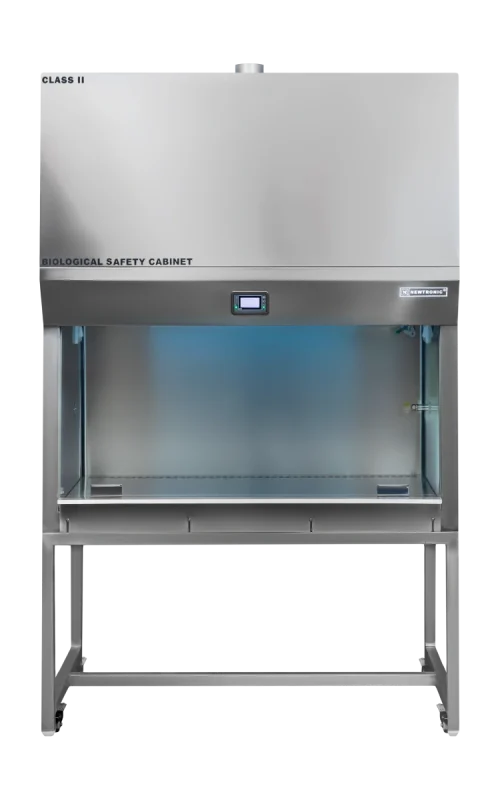

Biological Safety Cabinet

Enquire Now
Single piece SS working table which can be easily removable for easy cleaning.Multiple side-entry for Gas knobs.

Exterior available in PCGI or SS304.Interior available in SS304 or SS316 or SS316L.4mm Tempered Sliding Glass Door with counter-weight arrangement. Intermediate pre filter.H14 – HEPA Filter (99.97% down to 0.3 micron).

Microprocessor based Controller. UV light with timer. Optimal performance of air velocity, airflow and uniformity through dynamic balanced blower/motor. State-of-the-art Display: Sash status, Air Pressure, UV Light status, UV Burning Hours, HEPA status, Audio & visual alarms for airflow, pressure and sash height. Digital Pressure monitor. Door interlock for UV light and blower

Features

Alarms

Offers high-speed data transfer, surpassing serial (RS-485) communication, and adheres to a global standard for communication protocol, enabling data operations from any PC over the LAN without requiring a separate PC interface.

Safety

Temperature Overshoot/Undershoot, Delay Timer to safeguard the Compressor, MCB to cut-off over-current supply, Standby Controlling Sensor upon failure of Primary, Emergency Bell switch inside the Chamber.

Business Sector

Lifescience

Biotechnology

Biotechnology

Biotechnology

Explore More

lifescience

lifescience

Explore More
Features
Temperature Range 20°C to 60°C
Temperature Accuracy ± 0.5°C
Temperature Uniformity ± 1°C
Humidity Range 40% RH to 95% RH
Humidity Accuracy ± 2% RH
Humidity Uniformity ± 3% RH
Double walled with PUF insulation. Stainless Steel trays
SS 304 Interior & Exterior either SS 304 or Mild Steel Full-length inner glass door & metal door with gasket & lock on the outside
Internal LED lights Forced air circulation for uniform temperature
PU wheels for easy movement U-shaped SS tubular heaters
Non condensing steam injection type humidity system with standby heater & auto switch overs CFC free cooling system consisting of hermetically sealed compressor coupled with evaporation coil & condenser
Stand by humidity system with booster humidification Complete Operations driven through PLC with data logging capacity of upto 1000 readings
High speed Ethernet based communication All operations through a single 7″ Color Touch Screen
High quality imported make T/Rh combo sensor with 4-20 mA output Safety devices: Low & high temperature cut-off settable thermostats
Audio/Visual alarms for deviations Complete with DQ, IQ, OQ, PQ & SOP & Maintenance Manual
ICDAS – A Common Software suitable for 20 nos. Newtronic make equipments Door Access system (Numeric or Biometric)
4pt. Temperature & Humidity Scanner Mobile Alert system
Stand by Cooling System with auto switch overs (430 litre & above) Remote alarm system suitable for 4 nos. Newtronic make equipments
ModelCapacity – CuFt.Capacity – LitresInternal Size – (HxWxD) mmExternal Size – (HxWxD) mmTrays Qty.Tray Size – (WxD) mmApprox. Weight – Eqip. KgApprox. Weight – Ship. Kg
NLHC7SI 7 200 800 x 500 x 500 1315 x 660 x 985 3 430 x 460 150 225
NLHC16SI 16 430 1200 x 600 x 600 1715 x 760 x 1155 4 530 x 560 250 325
NLHC26SI 26 735 1500 x 700 x 700 2070 x 860 x 1255 5 630 x 660 275 350
NLHC34SI 34 1000 1500 x 800 x 800 2070 x 960 x 1355 5 730 x 760 350 425
NLHC54SI 54 1500 1500 x 1600 x 600 2070 x 1760 x 1155 10 695 x 560 350 450
NLHC71SI 71 2000 1500 x 1600 x 800 2070 x 1760 x 1355 10 695 x 760 375 475
Class II A2
Class II B2
Virus burn unit
ClassificationModelInternal Size-(H x W x D) mmExternal Size-(H x W x D) mmApprox. Weight (Kg)-Eqip.
NLBS2A2 610 x 610 x 610 2200 x 720 x 800 130
Class II A2 NLBS3A2 610 x 915 x 610 2200 x 1030 x 800 155
NLBS4A2 610 x 1220 x 610 2200 x 1330 x 800 168
NLBS2B2 610 x 610 x 610 2200 x 720 x 800 130
Class II B2 NLBS3B2 610 x 915 x 610 2200 x 1030 x 800 155
NLBS4B2 610 x 1220 x 610 2200 x 1330 x 800 168
