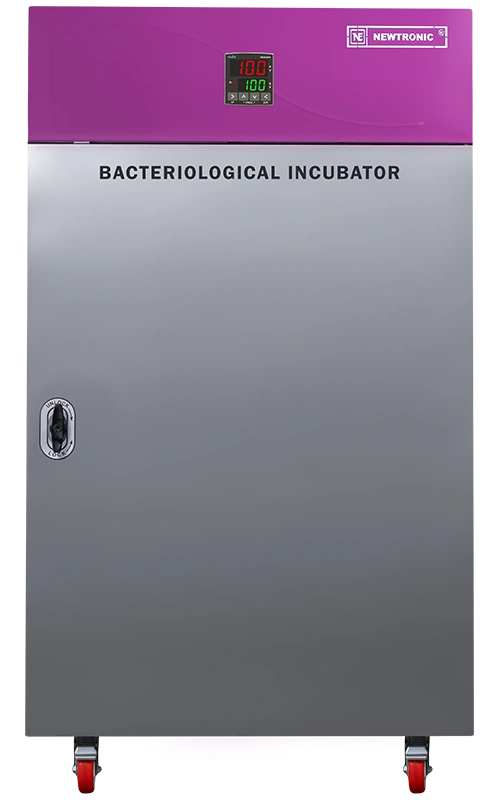

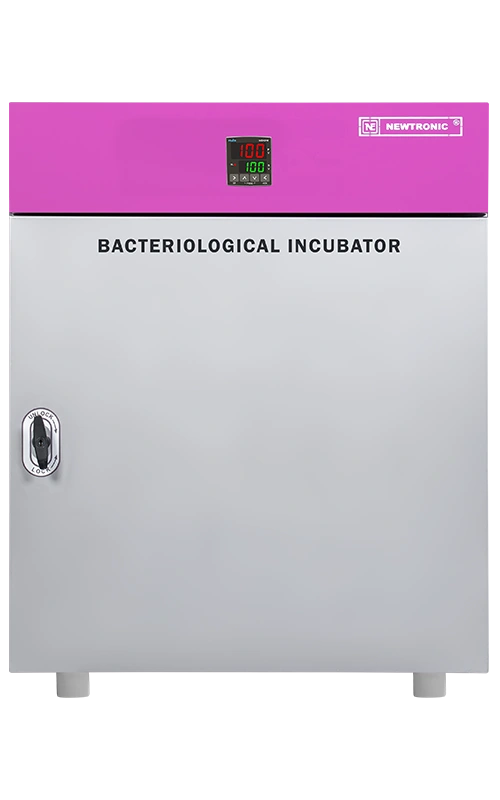

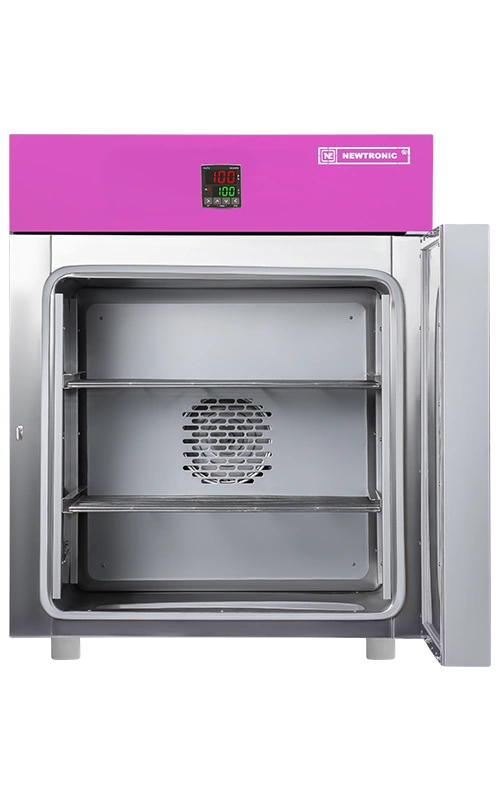

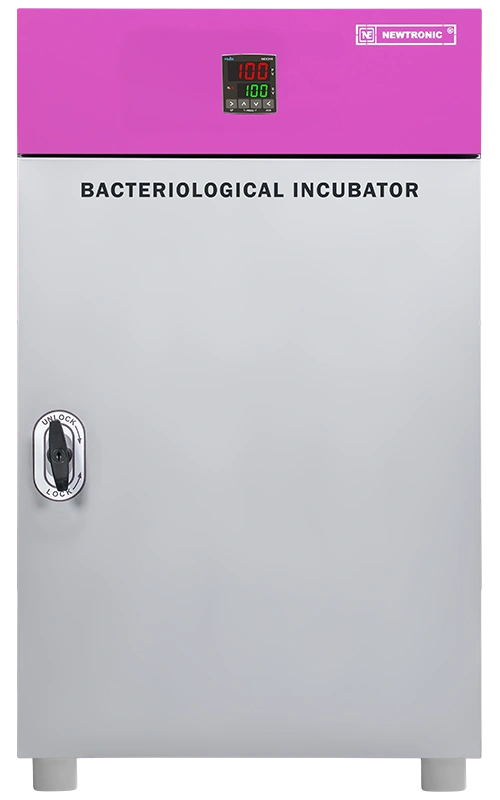

Bacteriological Incubator
Double walled with PUF insulation. SS 304 Interior & Exterior either SS 304 or Mild Steel. Stainless Steel trays. Forced air circulation for uniform temperature. PU wheels for easy movement. SS tubular heaters.
Complete operations driven through PID controller with data logging capacity of upto 1000 readings and with online print facility. High speed Ethernet based communication. High-quality PT-100 Temperature sensor. Safety devices: High temperature cut-off settable thermostats. Audio/Visual alarms for deviations. Complete with DQ, IQ, OQ, PQ ,SOP & Maintenance Manual.
Documentation And Tarining
ETHERNET COMMUNICATION
Offers high-speed data transfer, surpassing serial (RS-485) communication, and adheres to a global standard for communication protocol, enabling data operations from any PC over the LAN without requiring a separate PC interface.
Documentation & Training
IQ, OQ, PQ, Calibration certificates, Operations & maintenance manuals, GA & Electrical drawings, Material test certificates, Training to end-users.
ICDAS Software
21 CFR Part 11 Ready, Single software suitable for upto 20 equipments, Automatic daily data back-up, Alarm logs. Alarm acknowledgement with e-signatures, Audit trails, MKT Calculations, Graphical viewing & data trending, Data export in pdf format.
Complete Rage of alarms
Time of Alarm transmission, Name of Equipment, Transmitted message(Equipment name, alarm time, type of alarm & limits).
Mobile alert
21 CFR Part 11 Ready, Single software suitable for upto 20 equipments, Automatic daily data back-up, Alarm logs. Alarm acknowledgement with e-signatures, Audit trails, MKT Calculations, Graphical viewing & data trending, Data export in pdf format.
Safety
Temperature Overshoot/Undershoot, Delay Timer to safeguard the Compressor, MCB to cut-off over-current supply, Standby Controlling Sensor upon failure of Primary, Emergency Bell switch inside the Chamber.
Complete Rage of Alarms
Lifescience
Biotechnology
Food & Beverages
Blood Blank
| Temperature Range | (Ambient+5)°C to 60°C |
| Double walled with PUF insulation | SS 304 Interior & Exterior either SS 304 or Mild Steel |
| Stainless Steel trays | PU wheels for easy movement |
| Forced air circulation for uniform temperature | SS tubular heaters |
| Complete operations driven through PID controller with data logging capacity of upto 1000 readings and with online print facility | High speed Ethernet based communication |
| High-quality PT-100 Temperature sensor | Safety devices: High temperature cut-off settable thermostats |
| Audio/Visual alarms for deviations | Complete with DQ, IQ, OQ, PQ ,SOP & Maintenance Manual |
| ICDAS – A Single Software installation for all Newtronic make equipments | Remote alarm system suitable for upto 4 nos. Newtronic make equipments |
| Mobile Alert System |
| Model | Capacity – CuFt. | Capacity – Litres | External Size – (HxWxD) mm | Internal Size – (HxWxD) mm | Trays Qty. | Tray Size – (WxD) mm |
|---|---|---|---|---|---|---|
| NLLI3SE | 3 | 90 | 450 X 450 X 450 | 800 X 560 X 760 | 2 | 430 X 430 |
| NLLI5SE | 5 | 121 | 600 X 450 X 450 | 950 X 560 X 820 | 2 | 430 X 430 |
| NLLI8SE | 8 | 216 | 600 X 600 X 600 | 950 X 760 X 1030 | 2 | 560 X 560 |
| NLLI12SE | 12 | 324 | 900 X 600 X 600 | 1410 X 760 X 1060 | 3 | 560 X 560 |
| NLLI16SE | 16 | 430 | 1200 X 600 X 600 | 1710 X 760 X 1125 | 4 | 560 X 560 |
| NLLI36SE | 26 | 735 | 1500 X 700 X 700 | 2010 X 860 X 1225 | 5 | 660 X 660 |
| NLLI34SE | 34 | 1000 | 1500 X 800 X 800 | 2010 X 960 X 1325 | 5 | 760 X 760 |
| Temperature Range | 20°C to 60°C |
| Temperature Accuracy | ± 0.5°C |
| Temperature Uniformity | ± 1°C |
| Humidity Range | 40% RH to 95% RH |
| Humidity Accuracy | ± 2% RH |
| Humidity Uniformity | ± 3% RH |
| Double walled with PUF insulation. | Stainless Steel trays |
| SS 304 Interior & Exterior either SS 304 or Mild Steel | Full-length inner glass door & metal door with gasket & lock on the outside |
| Internal LED lights | Forced air circulation for uniform temperature |
| PU wheels for easy movement | U-shaped SS tubular heaters |
| Non condensing steam injection type humidity system with standby heater & auto switch overs | CFC free cooling system consisting of hermetically sealed compressor coupled with evaporation coil & condenser |
| Stand by humidity system with booster humidification | Complete Operations driven through PLC with data logging capacity of upto 1000 readings |
| High speed Ethernet based communication | All operations through a single 7″ Color Touch Screen |
| High quality imported make T/Rh combo sensor with 4-20 mA output | Safety devices: Low & high temperature cut-off settable thermostats |
| Audio/Visual alarms for deviations | Complete with DQ, IQ, OQ, PQ & SOP & Maintenance Manual |
| ICDAS – A Common Software suitable for 20 nos. Newtronic make equipments | Door Access system (Numeric or Biometric) |
| 4pt. Temperature & Humidity Scanner | Mobile Alert system |
| Stand by Cooling System with auto switch overs (430 litre & above) | Remote alarm system suitable for 4 nos. Newtronic make equipments |
| Model | Capacity – CuFt. | Capacity – Litres | Internal Size – (HxWxD) mm | External Size – (HxWxD) mm | Trays Qty. | Tray Size – (WxD) mm | Approx. Weight – Eqip. Kg | Approx. Weight – Ship. Kg |
|---|---|---|---|---|---|---|---|---|
| NLHC7SI | 7 | 200 | 800 x 500 x 500 | 1315 x 660 x 985 | 3 | 430 x 460 | 150 | 225 |
| NLHC16SI | 16 | 430 | 1200 x 600 x 600 | 1715 x 760 x 1155 | 4 | 530 x 560 | 250 | 325 |
| NLHC26SI | 26 | 735 | 1500 x 700 x 700 | 2070 x 860 x 1255 | 5 | 630 x 660 | 275 | 350 |
| NLHC34SI | 34 | 1000 | 1500 x 800 x 800 | 2070 x 960 x 1355 | 5 | 730 x 760 | 350 | 425 |
| NLHC54SI | 54 | 1500 | 1500 x 1600 x 600 | 2070 x 1760 x 1155 | 10 | 695 x 560 | 350 | 450 |
| NLHC71SI | 71 | 2000 | 1500 x 1600 x 800 | 2070 x 1760 x 1355 | 10 | 695 x 760 | 375 | 475 |
