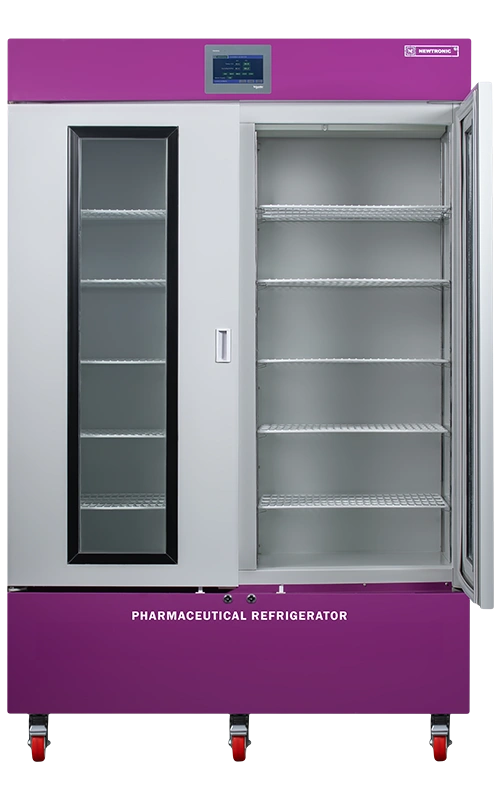

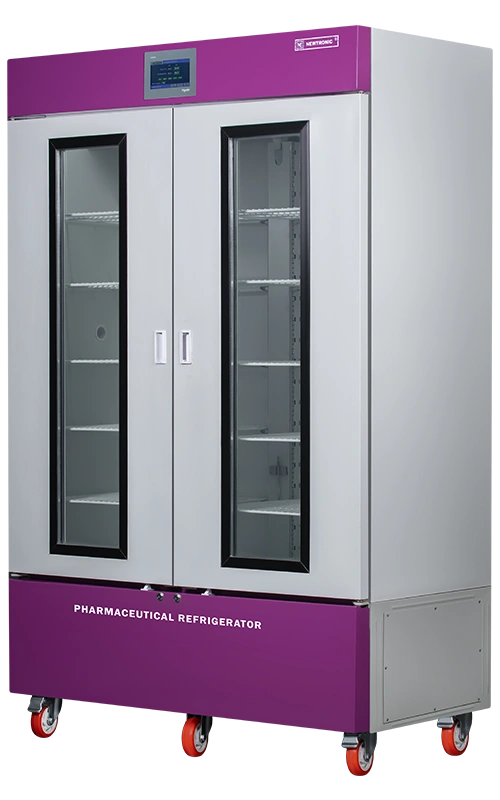

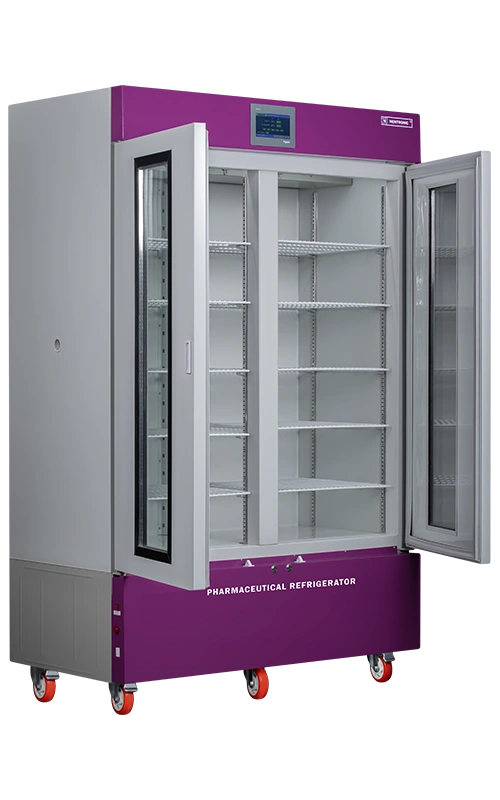

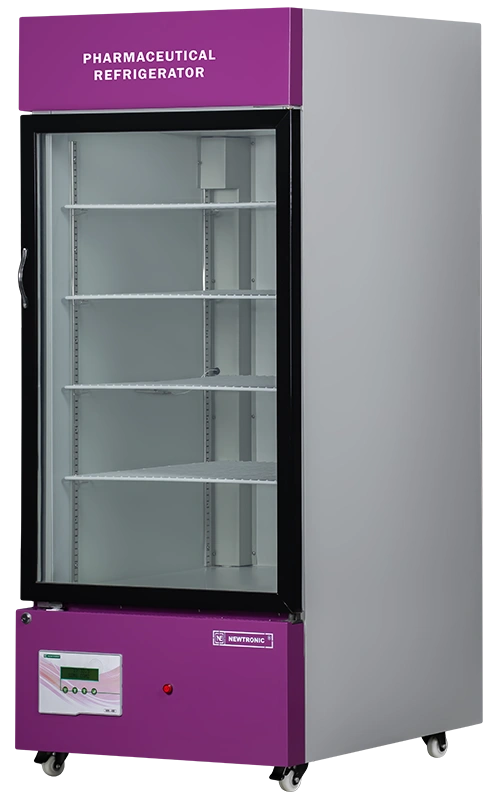

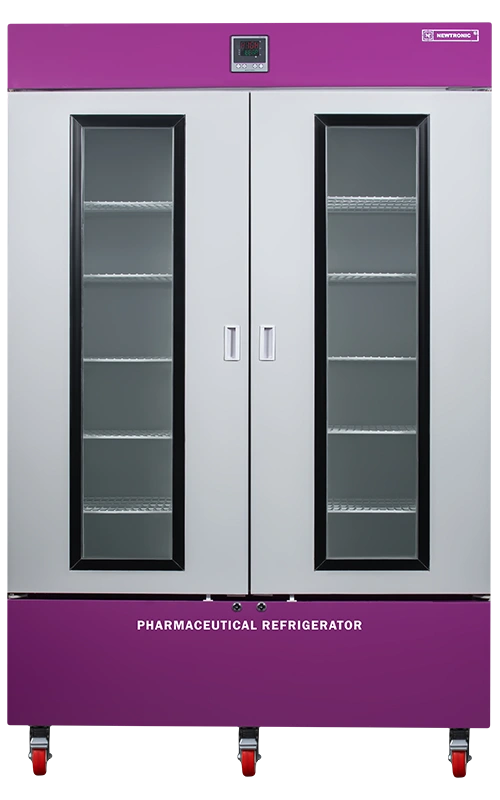

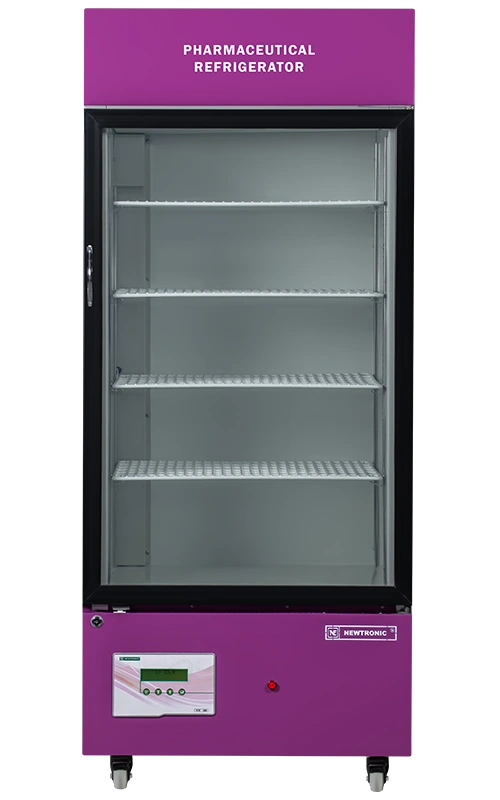

Pharma Refrigerator
Intelligent Solution For Medical Preservation
Pharmaceutical Refrigerators are used to cool medical / pharma products for preservation. They include refrigeration units for storing vaccines and other medical or pharmaceutical supplies. Temperature variation can have an impact on the viability and efficacy of vaccines, reagents and other temperature-sensitive medical products. These variations can shorten product shelf life, degrade enzymes and reduce vaccine effectiveness.
Therefore, it is important to choose a high-performance refrigerator that has been designed for the demanding standards of laboratory and clinical environment. Newtronic Pharmaceutical Refrigerators maintain a consistent temperature in order to minimize the risk of degradation. It achieves a high degree of accuracy
Features
Cyclic Defrost
Forced Air Draft Circulation
Uniform Temperature
Low Noise
Environment Friendly
Intelligent Alarms
Business Sector
Warehouse
Pharmaceuticals
Food & Beverages
Biotechnology
Features
| Inner Body | Pre Coated Galvanised Iron |
| Outer Body | Pre painted Galvanised Iron |
| Insulation | High Density CFC free PUF Insulation |
| Door | Multi layer transparent full view glass door with lock & handle, Magnetic gasket is provided for airtight sealing, Single door & two doors model available |
| Moveability | Castor wheels are provided for easy movement with an option for having locks |
| Controller | Electronic controller with digital display |
| Lighting | Bright LED interior lighting |
| Alarms | Temperature deviation alarm and door ajar alarm |
| Cooling System | CFC free cooling system, The compressor is hermetically sealed for better efficiency, It has low noise and has low power consumption |
| Power Supply | 230 Volts 50 Hz main supply. Also available with 60 Hz cycle |
| Data Logger to automatically record parameters | Adjustable Trays |
| Circular chart recorder to archive data points over a time interval | Bright LED Lights |
| Digital Controller with Audio Visual Alarm | Low Power Consumption |
| Low Noise Design |
| Model | Capacity – CuFt. | Capacity – Litres | Internal Size – (HxWxD) mm | External Size – (HxWxD) mm | Trays Qty. | Tray Size – (WxD) mm | Approx. Weight – Eqip. Kg | Approx. Weight – Ship. Kg |
|---|---|---|---|---|---|---|---|---|
| NLDF7MI | 7 | 200 | 510 x 560 x 700 | 1500 x 720 x 880 | 2 | 540 x 605 | 175 | 250 |
| NLDF11MI | 11 | 300 | 910 x 560 x 590 | 1955 x 720 x 770 | 3 | 540 x 495 | 225 | 300 |
| NLDF14MI | 14 | 400 | 910 x 560 x 785 | 1955 x 720 x 965 | 3 | 540 x 690 | 275 | 350 |
| NLDF25MI | 25 | 700 | 1200 x 800 x 730 | 2120 x 960 x 1020 | 4 | 780 x 635 | 300 | 375 |
| NLDF34MI | 34 | 1050 | 1200 x 1200 x 730 | 2110 x 1360 x 1020 | 8 | 510 x 635 | 325 | 425 |
| NLDF54MI | 54 | 1500 | 1200 x 1500 x 830 | 2110 x 1660 x 1120 | 8 | 660 x 735 | 350 | 450 |
| Temperature Range | 20°C to 60°C |
| Temperature Accuracy | ± 0.5°C |
| Temperature Uniformity | ± 1°C |
| Humidity Range | 40% RH to 95% RH |
| Humidity Accuracy | ± 2% RH |
| Humidity Uniformity | ± 3% RH |
| Double walled with PUF insulation. | Stainless Steel trays |
| SS 304 Interior & Exterior either SS 304 or Mild Steel | Full-length inner glass door & metal door with gasket & lock on the outside |
| Internal LED lights | Forced air circulation for uniform temperature |
| PU wheels for easy movement | U-shaped SS tubular heaters |
| Non condensing steam injection type humidity system with standby heater & auto switch overs | CFC free cooling system consisting of hermetically sealed compressor coupled with evaporation coil & condenser |
| Stand by humidity system with booster humidification | Complete Operations driven through PLC with data logging capacity of upto 1000 readings |
| High speed Ethernet based communication | All operations through a single 7″ Color Touch Screen |
| High quality imported make T/Rh combo sensor with 4-20 mA output | Safety devices: Low & high temperature cut-off settable thermostats |
| Audio/Visual alarms for deviations | Complete with DQ, IQ, OQ, PQ & SOP & Maintenance Manual |
| ICDAS – A Common Software suitable for 20 nos. Newtronic make equipments | Door Access system (Numeric or Biometric) |
| 4pt. Temperature & Humidity Scanner | Mobile Alert system |
| Stand by Cooling System with auto switch overs (430 litre & above) | Remote alarm system suitable for 4 nos. Newtronic make equipments |
| Model | Capacity – CuFt. | Capacity – Litres | Internal Size – (HxWxD) mm | External Size – (HxWxD) mm | Trays Qty. | Tray Size – (WxD) mm | Approx. Weight – Eqip. Kg | Approx. Weight – Ship. Kg |
|---|---|---|---|---|---|---|---|---|
| NLHC7SI | 7 | 200 | 800 x 500 x 500 | 1315 x 660 x 985 | 3 | 430 x 460 | 150 | 225 |
| NLHC16SI | 16 | 430 | 1200 x 600 x 600 | 1715 x 760 x 1155 | 4 | 530 x 560 | 250 | 325 |
| NLHC26SI | 26 | 735 | 1500 x 700 x 700 | 2070 x 860 x 1255 | 5 | 630 x 660 | 275 | 350 |
| NLHC34SI | 34 | 1000 | 1500 x 800 x 800 | 2070 x 960 x 1355 | 5 | 730 x 760 | 350 | 425 |
| NLHC54SI | 54 | 1500 | 1500 x 1600 x 600 | 2070 x 1760 x 1155 | 10 | 695 x 560 | 350 | 450 |
| NLHC71SI | 71 | 2000 | 1500 x 1600 x 800 | 2070 x 1760 x 1355 | 10 | 695 x 760 | 375 | 475 |
